603f6c21407aad454fbbd10e DIP 3 Color LED Module //cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/603f6c21407aad454fbbd110/webp/201608261700127175341.jpg

Description

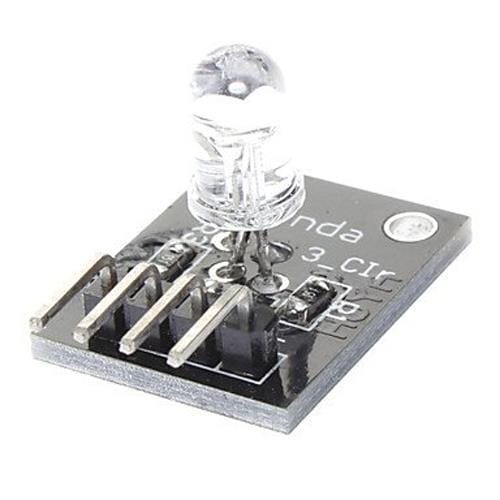

This module consists of a 5mm RGB LED and three 150Ω limiting resistors to prevent burnout. Adjusting the PWM signal on each colour pin will result in different colours.

This is a DIP 3 Color LED Module. Through the PWM adjusting, three primary colours can be mixed to obtain different colours.

Connect the red pin (R) on the KY-016 to pin 11 on the Arduino. Blue (B) to pin 10, green (G) to pin 9 and ground (-) to GND. Notice that you do not need to use limiting resistors since they are already included on the board.

Connection Diagram:



DIP 3 Color LED ModulePin Connection with Arduino:
LED module Arduino
R Pin 11
B Pin 10
G Pin 9
GND




Features :

  1. The use of plug-in full-colour LED.
  2. RGB trichromatic limiting resistor to prevent burnout.
  3. With a variety of single-chip interface.
  4. Through the PWM adjusting, three primary colours can be mixed to obtain different colours
  5. The working voltage: 5V

Package Includes :

1 x DIP 3 Color LED Module.

TT-RB-44177
in stock INR 131.098
1 1

DIP 3 Color LED Module

Sku: TT-RB-44177
₹131.1


Sold By: tenettech
