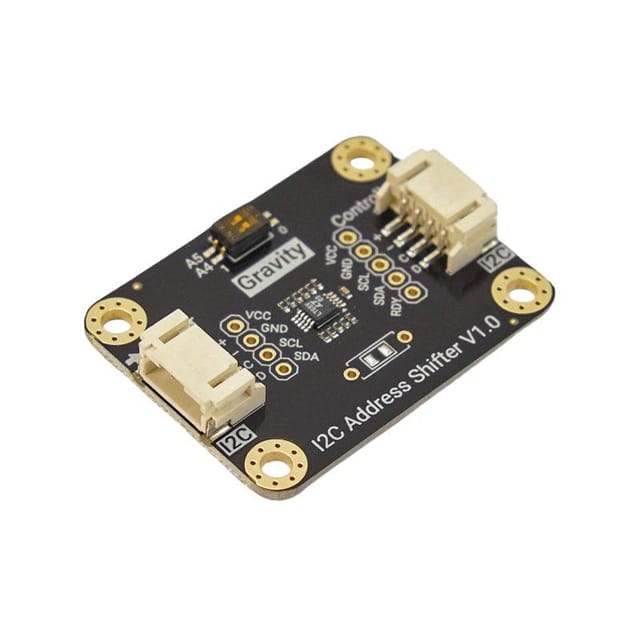

The DFRobot Gravity I2C Address Shifter offers an efficient hardware-based solution to resolve I2C address conflicts in multi-sensor systems. This compact, plug-and-play module allows developers to easily assign new I2C addresses to sensors via dip switches or onboard resistors.This Address Shifter Supporting up to 20 address variations, it eliminates the need for complex software multiplexing, making it ideal for rapid prototyping. It features Gravity connectors and operates reliably across a wide voltage range.

Features:

1. Hardware-based I2C address remapping
2. Supports 4 address changes via DIP switch
3. Over 20 addresses possible via resistor soldering
4. No additional libraries or code modifications required
5. Standard Gravity interface for easy integration
6. Clean and stable communication without timing issues

Package Includes:

1 x Gravity: I2C Address Shifter
1 x XH2.54-10pin Header
1 x Double end PH2.0-4P cable
