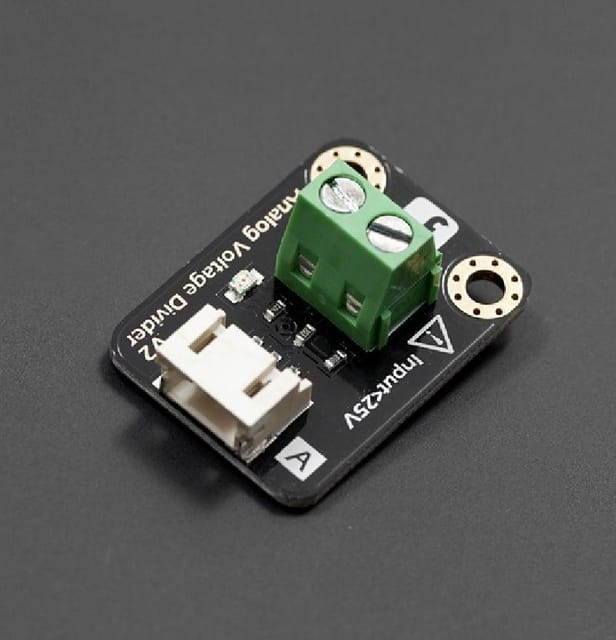

6729e53bb731530036b28450 DFRobot Gravity: Analog Voltage Divider V2 https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6729e53cb731530036b28452/dfr-3.jpg

The Analog Voltage Divider V2 can detect the supply voltage from 0.0245V to 25V. This module is based on resistor divider principle. The voltage detection module allows the input voltage to reduce 5 times. As the Arduino analog input voltage is normally maximum 5V, the input voltage of analog voltage detection module can not exceed 5Vx5 which is 25V.

Notice: The new version of analog sensor port pin mapping has been changed as the following two features.
Dfrobot Pin%20Mapping%20Comparison

Features:

  1. Wide voltage range from 3.3V to 5V
  2. Standard assembling struct (two 3mm holes with multiple of 5cm as interval)
  3. Easily recognitive interfaces of sensors (“A” for analog and “D” for digital)
  4. Icons to simplely illustrate sensor function
  5. High quality connector
  6. Immersion gold surface

Package Includes:

1 x DFRobot Gravity: Analog Voltage Divider V2

 TT-RB-R123762
in stock INR 401
1 1

DFRobot Gravity: Analog Voltage Divider V2

Sku: TT-RB-R123762
Be the first to review this product
₹401
Add to Cart Buy Now
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

The Analog Voltage Divider V2 can detect the supply voltage from 0.0245V to 25V. This module is based on resistor divider principle. The voltage detection module allows the input voltage to reduce 5 times. As the Arduino analog input voltage is normally maximum 5V, the input voltage of analog voltage detection module can not exceed 5Vx5 which is 25V.

Notice: The new version of analog sensor port pin mapping has been changed as the following two features.
Dfrobot Pin%20Mapping%20Comparison

Features:

  1. Wide voltage range from 3.3V to 5V
  2. Standard assembling struct (two 3mm holes with multiple of 5cm as interval)
  3. Easily recognitive interfaces of sensors (“A” for analog and “D” for digital)
  4. Icons to simplely illustrate sensor function
  5. High quality connector
  6. Immersion gold surface

Package Includes:

1 x DFRobot Gravity: Analog Voltage Divider V2
