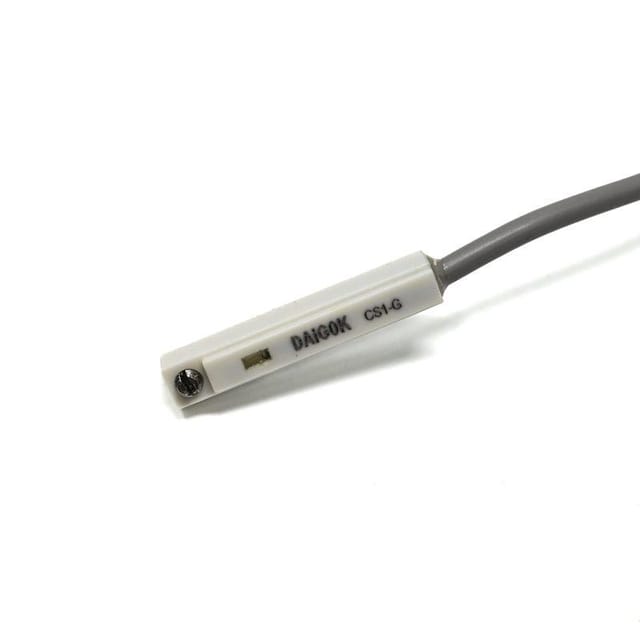

DAIGOK CS1-G Magnetic/inductive Sensor Modules ROHS are designed for industrial automation applications, offering reliable position detection. With a supply voltage range of 6V to 36V DC and a maximum current of 100mA, these sensors come in both contact (mechanical) and non-contact types. They operate in temperatures from -30℃ to +90℃ (up to +150℃ for high-temp models) and feature IP68 protection, making them dustproof and waterproof. The sensors have a frequency response of up to 200Hz and a long service life, supporting up to 500 million cycles. Available in customizable configurations, they are ideal for use in various types of cylinders and harsh environments.
Features:
- Voltage Supply: 6V to 36V DC, max 100mA.
- Sensing Type: Contact (mechanical) or non-contact.
- Output: Three-wire normally open.
- Temperature Range: -30℃ to +90℃
- Protection: IP68
- Frequency Response: Up to 200Hz.
