675d1c90258f4f003ee651c3 Bridgelux 976-BXRV-TR-1830G-10A0-B-25-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/675d1c92258f4f003ee651c6/mfg_vesta-tunable.jpg

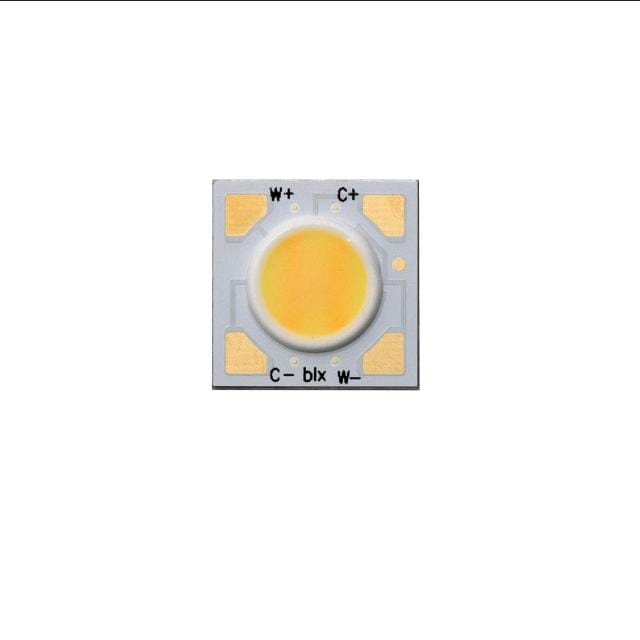

LED COB VESTA WARM WHT SQU 1800K

Product Attributes:

Series Vesta™
Product Status Active
Type Chip On Board (COB)
Color White, Warm
CCT (K) 1800K 5-Step MacAdam Ellipse, 3000K 3-Step MacAdam Ellipse
Wavelength -
Configuration Square
Luminous Flux @ Current/Temperature 980lm
Current - Test 250mA
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 34.8V
Lumens/Watt @ Current - Test 113 lm/W
Current - Max 480mA
CRI (Color Rendering Index) 90
Viewing Angle 130°
Features -
Size / Dimension 15.90mm L x 15.90mm W
Height 1.65mm
Light Emitting Surface (LES) 10.00mm Dia
Lens Type Flat
TT-DKEY-976-BXRV-TR-1830G-10A0-B-25-ND
in stock INR
Bridgelux
1 1
Bridgelux 976-BXRV-TR-1830G-10A0-B-25-ND

Bridgelux 976-BXRV-TR-1830G-10A0-B-25-ND

Sku: TT-DKEY-976-BXRV-TR-1830G-10A0-B-25-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

LED COB VESTA WARM WHT SQU 1800K

Product Attributes:

Series Vesta™
Product Status Active
Type Chip On Board (COB)
Color White, Warm
CCT (K) 1800K 5-Step MacAdam Ellipse, 3000K 3-Step MacAdam Ellipse
Wavelength -
Configuration Square
Luminous Flux @ Current/Temperature 980lm
Current - Test 250mA
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 34.8V
Lumens/Watt @ Current - Test 113 lm/W
Current - Max 480mA
CRI (Color Rendering Index) 90
Viewing Angle 130°
Features -
Size / Dimension 15.90mm L x 15.90mm W
Height 1.65mm
Light Emitting Surface (LES) 10.00mm Dia
Lens Type Flat
