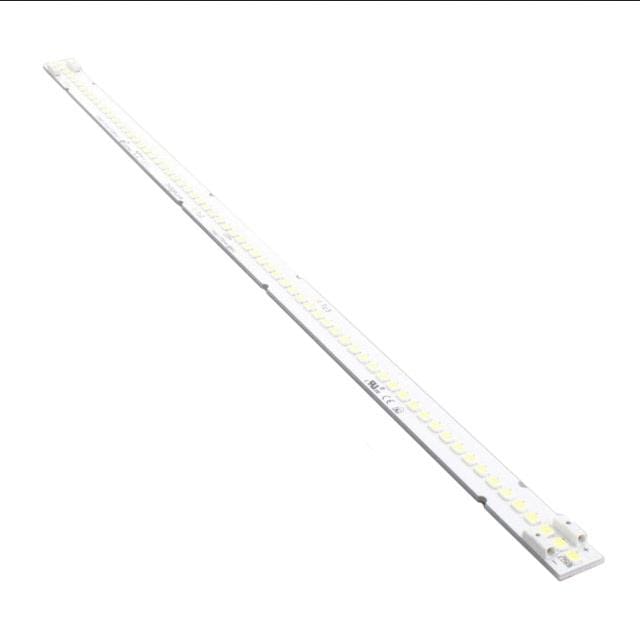

675fd2e1f1f664003ef577df Bridgelux 976-BXEB-L0340U-50E0750-C-C3-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/675fd2e1f1f664003ef577e2/bxeb-l0340u-50e0750-c-c3.jpg

LED MOD EB SER WH LNR STRP 5000K

Product Attributes:

Series EB Series™ Slim Gen 3
Product Status Active
Type LED Module
Color White, Cool
CCT (K) 5000K 3-Step MacAdam Ellipse
Wavelength -
Configuration Linear Light Strip
Luminous Flux @ Current/Temperature 1530lm (Typ)
Current - Test 700mA
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 10.9V
Lumens/Watt @ Current - Test 200 lm/W
Current - Max 1.7A
CRI (Color Rendering Index) 80
Viewing Angle 120°
Features With Connector
Size / Dimension 340.00mm L x 12.70mm W
Height 4.30mm
Light Emitting Surface (LES) -
Lens Type Flat
TT-DKEY-976-BXEB-L0340U-50E0750-C-C3-ND
in stock INR
Bridgelux
1 1
Bridgelux 976-BXEB-L0340U-50E0750-C-C3-ND

Bridgelux 976-BXEB-L0340U-50E0750-C-C3-ND

Sku: TT-DKEY-976-BXEB-L0340U-50E0750-C-C3-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

LED MOD EB SER WH LNR STRP 5000K

Product Attributes:

Series EB Series™ Slim Gen 3
Product Status Active
Type LED Module
Color White, Cool
CCT (K) 5000K 3-Step MacAdam Ellipse
Wavelength -
Configuration Linear Light Strip
Luminous Flux @ Current/Temperature 1530lm (Typ)
Current - Test 700mA
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 10.9V
Lumens/Watt @ Current - Test 200 lm/W
Current - Max 1.7A
CRI (Color Rendering Index) 80
Viewing Angle 120°
Features With Connector
Size / Dimension 340.00mm L x 12.70mm W
Height 4.30mm
Light Emitting Surface (LES) -
Lens Type Flat
