675fd2ddf1f664003ef577d1 Samsung Semiconductor, Inc. 1510-SPHWHAHDNF27YZT3D4-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/675fd2def1f664003ef577d4/mfg_sphwhahdna2xyzx3d4_secondary.jpg

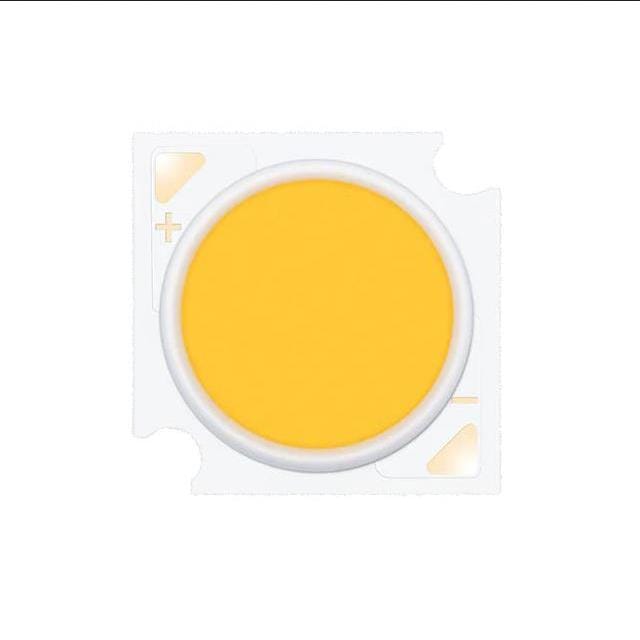

LED COB D GEN4 NEUT WHT SQ 4000K

Product Attributes:

Series COB D Gen4
Product Status Active
Type Chip On Board (COB)
Color White, Neutral
CCT (K) 4000K 3-Step MacAdam Ellipse
Wavelength -
Configuration Square
Luminous Flux @ Current/Temperature 2800lm (Typ)
Current - Test 540mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 33.6V
Lumens/Watt @ Current - Test 154 lm/W
Current - Max 1.38A
CRI (Color Rendering Index) 90
Viewing Angle 115°
Features -
Size / Dimension 19.00mm L x 19.00mm W
Height 1.70mm
Light Emitting Surface (LES) 14.50mm Dia
Lens Type Flat
TT-DKEY-1510-SPHWHAHDNF27YZT3D4-ND
in stock INR
Samsung Semiconductor, Inc.
1 1
Samsung Semiconductor, Inc. 1510-SPHWHAHDNF27YZT3D4-ND

Samsung Semiconductor, Inc. 1510-SPHWHAHDNF27YZT3D4-ND

Sku: TT-DKEY-1510-SPHWHAHDNF27YZT3D4-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

LED COB D GEN4 NEUT WHT SQ 4000K

Product Attributes:

Series COB D Gen4
Product Status Active
Type Chip On Board (COB)
Color White, Neutral
CCT (K) 4000K 3-Step MacAdam Ellipse
Wavelength -
Configuration Square
Luminous Flux @ Current/Temperature 2800lm (Typ)
Current - Test 540mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 33.6V
Lumens/Watt @ Current - Test 154 lm/W
Current - Max 1.38A
CRI (Color Rendering Index) 90
Viewing Angle 115°
Features -
Size / Dimension 19.00mm L x 19.00mm W
Height 1.70mm
Light Emitting Surface (LES) 14.50mm Dia
Lens Type Flat
