675d1ce0dc9849002420c6f9 Bridgelux 976-BXRE-65E0401-C-83-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/675d1ce2dc9849002420c6fc/bxre-65e0401-c-83.jpg

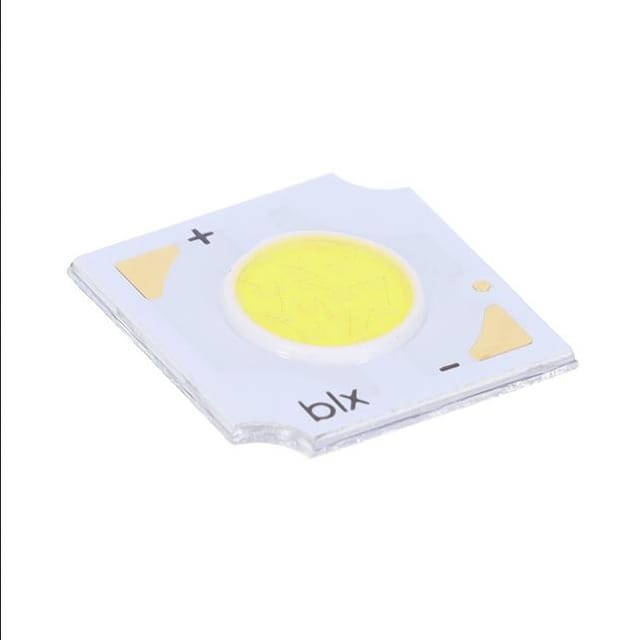

LED COB V6 COOL WHT SQUARE 6500K

Product Attributes:

Series Gen 8 V6 Array
Product Status Active
Type Chip On Board (COB)
Color White, Cool
CCT (K) 6500K 3-Step MacAdam Ellipse
Wavelength -
Configuration Square
Luminous Flux @ Current/Temperature 469lm (Typ)
Current - Test 80mA
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 33.7V
Lumens/Watt @ Current - Test 174 lm/W
Current - Max 250mA
CRI (Color Rendering Index) 80
Viewing Angle 120°
Features -
Size / Dimension 12.50mm L x 12.50mm W
Height 1.65mm
Light Emitting Surface (LES) 6.30mm Dia
Lens Type Flat
TT-DKEY-976-BXRE-65E0401-C-83-ND
in stock INR
Bridgelux
1 1
Bridgelux 976-BXRE-65E0401-C-83-ND

Bridgelux 976-BXRE-65E0401-C-83-ND

Sku: TT-DKEY-976-BXRE-65E0401-C-83-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

LED COB V6 COOL WHT SQUARE 6500K

Product Attributes:

Series Gen 8 V6 Array
Product Status Active
Type Chip On Board (COB)
Color White, Cool
CCT (K) 6500K 3-Step MacAdam Ellipse
Wavelength -
Configuration Square
Luminous Flux @ Current/Temperature 469lm (Typ)
Current - Test 80mA
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 33.7V
Lumens/Watt @ Current - Test 174 lm/W
Current - Max 250mA
CRI (Color Rendering Index) 80
Viewing Angle 120°
Features -
Size / Dimension 12.50mm L x 12.50mm W
Height 1.65mm
Light Emitting Surface (LES) 6.30mm Dia
Lens Type Flat
