675d1d13719587002442c4c0 Bridgelux 976-1726-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/675d1d14719587002442c4c3/bxrv-dr-1830h-3000-a-13.jpg

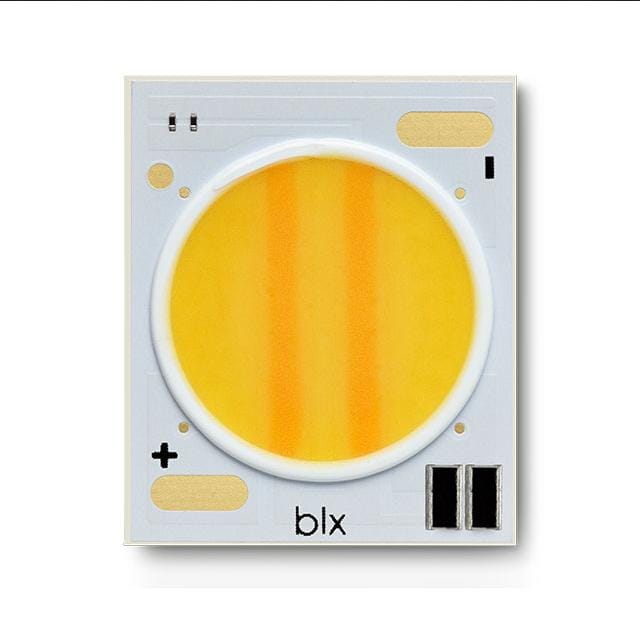

LED COB VESTA WM WHT RECT 2400K

Product Attributes:

Series Vesta™
Product Status Active
Type Chip On Board (COB)
Color White, Warm
CCT (K) 2400K (1800K ~ 3000K) 3-Step MacAdam Ellipse
Wavelength -
Configuration Rectangle
Luminous Flux @ Current/Temperature 3300lm (Typ)
Current - Test 950mA
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 34.1V
Lumens/Watt @ Current - Test 102 lm/W
Current - Max 1.05A
CRI (Color Rendering Index) 95
Viewing Angle 110°
Features -
Size / Dimension 24.00mm L x 20.00mm W
Height 1.70mm
Light Emitting Surface (LES) 16.20mm Dia
Lens Type Flat
TT-DKEY-976-1726-ND
in stock INR
Bridgelux
1 1
Bridgelux 976-1726-ND

Bridgelux 976-1726-ND

Sku: TT-DKEY-976-1726-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

LED COB VESTA WM WHT RECT 2400K

Product Attributes:

Series Vesta™
Product Status Active
Type Chip On Board (COB)
Color White, Warm
CCT (K) 2400K (1800K ~ 3000K) 3-Step MacAdam Ellipse
Wavelength -
Configuration Rectangle
Luminous Flux @ Current/Temperature 3300lm (Typ)
Current - Test 950mA
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 34.1V
Lumens/Watt @ Current - Test 102 lm/W
Current - Max 1.05A
CRI (Color Rendering Index) 95
Viewing Angle 110°
Features -
Size / Dimension 24.00mm L x 20.00mm W
Height 1.70mm
Light Emitting Surface (LES) 16.20mm Dia
Lens Type Flat
