66ab73b3a2ac619693f98a9a PUI Audio, Inc. 668-1260-2-ND,668-1260-1-ND,668-1260-6-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/66ab73b4a2ac619693f98aa5/sms-1508ms-2-r.jpg

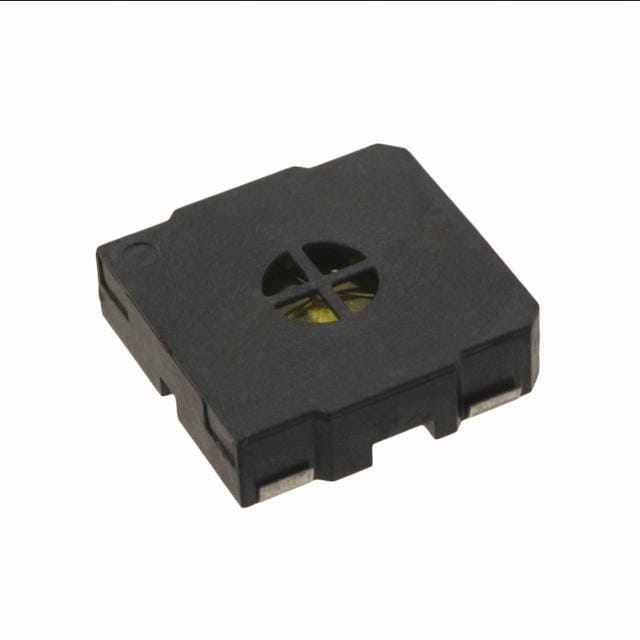

SPEAKER 8OHM 500MW TOP PORT 87DB

Product Attributes:

Series SMS
Product Status Active
Technology Magnetic
Type General Purpose
Frequency Range 500 Hz ~ 10 kHz
Frequency - Self Resonant 800Hz
Impedance 8 Ohms
Efficiency - dBA 87.00
Efficiency - Testing 500mW/100mm
Efficiency - Type Sound Pressure Level (SPL)
Power - Rated 500 mW
Power - Max 800 mW
Port Location Top
Shape Square
Material - Cone Polyimide (PI)
Material - Magnet SmCo
Ingress Protection -
Ratings -
Termination Solder Pads
Size / Dimension 0.591" L x 0.591" W (15.00mm x 15.00mm)
Height - Seated (Max) 0.157" (4.00mm)
TT-DKEY-668-1260-2-ND,668-1260-1-ND,668-1260-6-ND
in stock INR
PUI Audio, Inc.
1 1
PUI Audio, Inc. 668-1260-2-ND,668-1260-1-ND,668-1260-6-ND

PUI Audio, Inc. 668-1260-2-ND,668-1260-1-ND,668-1260-6-ND

Sku: TT-DKEY-668-1260-2-ND,668-1260-1-ND,668-1260-6-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

SPEAKER 8OHM 500MW TOP PORT 87DB

Product Attributes:

Series SMS
Product Status Active
Technology Magnetic
Type General Purpose
Frequency Range 500 Hz ~ 10 kHz
Frequency - Self Resonant 800Hz
Impedance 8 Ohms
Efficiency - dBA 87.00
Efficiency - Testing 500mW/100mm
Efficiency - Type Sound Pressure Level (SPL)
Power - Rated 500 mW
Power - Max 800 mW
Port Location Top
Shape Square
Material - Cone Polyimide (PI)
Material - Magnet SmCo
Ingress Protection -
Ratings -
Termination Solder Pads
Size / Dimension 0.591" L x 0.591" W (15.00mm x 15.00mm)
Height - Seated (Max) 0.157" (4.00mm)
