66ab73c1c9ebf1a9199e9de8 CUI Devices 102-1306-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/66ab73c2c9ebf1a9199e9df6/cms0401kl-3x.jpg

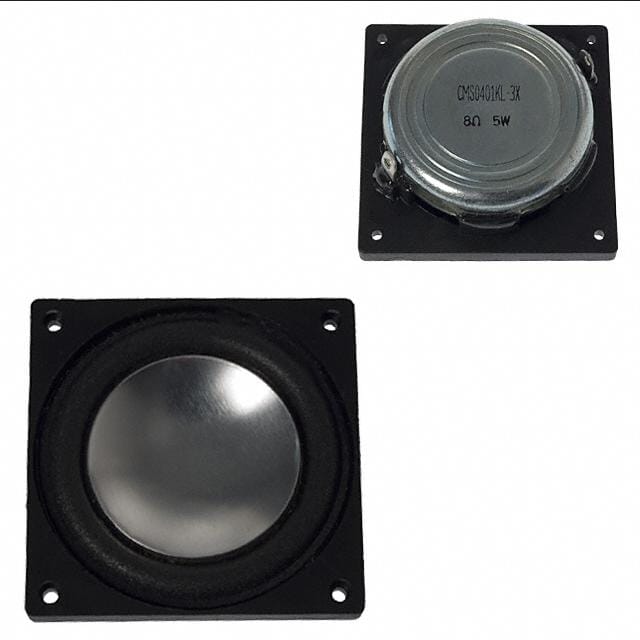

SPEAKER 8OHM 5W TOP PORT 87DB

Product Attributes:

Series CMS
Product Status Active
Technology Magnetic
Type General Purpose
Frequency Range 312 Hz ~ 20 kHz
Frequency - Self Resonant 390Hz
Impedance 8 Ohms
Efficiency - dBA 87.00
Efficiency - Testing 1W/500mm
Efficiency - Type Sound Pressure Level (SPL)
Power - Rated 5 W
Power - Max 8 W
Port Location Top
Shape Round, Square Frame
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Material - Magnet Nd-Fe-B
Ingress Protection -
Ratings -
Termination Solder Eyelet(s)
Size / Dimension 1.579" L x 1.579" W (40.10mm x 40.10mm)
Height - Seated (Max) 0.571" (14.50mm)
TT-DKEY-102-1306-ND
in stock INR
CUI Devices
1 1
CUI Devices 102-1306-ND

CUI Devices 102-1306-ND

Sku: TT-DKEY-102-1306-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

SPEAKER 8OHM 5W TOP PORT 87DB

Product Attributes:

Series CMS
Product Status Active
Technology Magnetic
Type General Purpose
Frequency Range 312 Hz ~ 20 kHz
Frequency - Self Resonant 390Hz
Impedance 8 Ohms
Efficiency - dBA 87.00
Efficiency - Testing 1W/500mm
Efficiency - Type Sound Pressure Level (SPL)
Power - Rated 5 W
Power - Max 8 W
Port Location Top
Shape Round, Square Frame
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Material - Magnet Nd-Fe-B
Ingress Protection -
Ratings -
Termination Solder Eyelet(s)
Size / Dimension 1.579" L x 1.579" W (40.10mm x 40.10mm)
Height - Seated (Max) 0.571" (14.50mm)
