66ab73b6566fd83964ed6f17 PUI Audio, Inc. 668-1542-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/66ab73b8566fd83964ed6f37/mfg_as03208ms-3-r_front.jpg

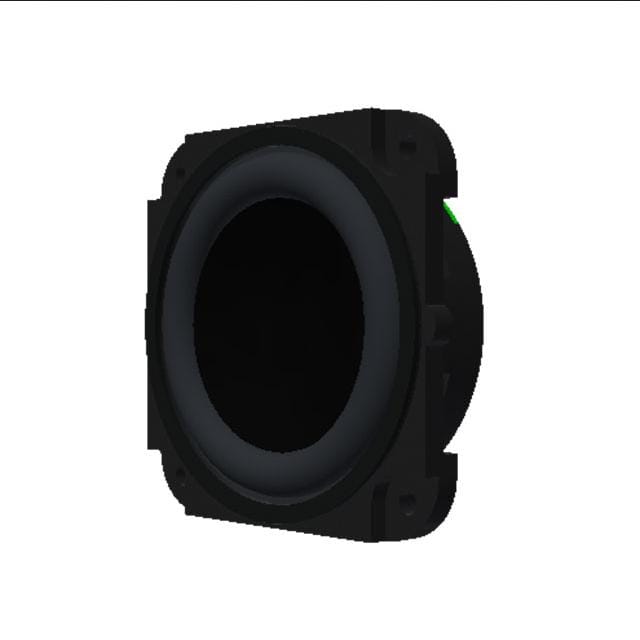

SPEAKER 8OHM 3W TOP PORT 85DB

Product Attributes:

Series AS
Product Status Active
Technology Magnetic
Type General Purpose
Frequency Range 200 Hz ~ 20 kHz
Frequency - Self Resonant 200Hz
Impedance 8 Ohms
Efficiency - dBA 85.00
Efficiency - Testing 1W/500mm
Efficiency - Type Sound Pressure Level (SPL)
Power - Rated 3 W
Power - Max 4 W
Port Location Top
Shape Round, Square Frame
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Material - Magnet Nd-Fe-B
Ingress Protection IP65 - Dust Tight, Water Resistant
Ratings IEC 60601-1-8
Termination Solder Eyelet(s)
Size / Dimension 1.248" L x 1.248" W (31.70mm x 31.70mm)
Height - Seated (Max) 0.650" (16.50mm)
TT-DKEY-668-1542-ND
in stock INR
PUI Audio, Inc.
1 1
PUI Audio, Inc. 668-1542-ND

PUI Audio, Inc. 668-1542-ND

Sku: TT-DKEY-668-1542-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

SPEAKER 8OHM 3W TOP PORT 85DB

Product Attributes:

Series AS
Product Status Active
Technology Magnetic
Type General Purpose
Frequency Range 200 Hz ~ 20 kHz
Frequency - Self Resonant 200Hz
Impedance 8 Ohms
Efficiency - dBA 85.00
Efficiency - Testing 1W/500mm
Efficiency - Type Sound Pressure Level (SPL)
Power - Rated 3 W
Power - Max 4 W
Port Location Top
Shape Round, Square Frame
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Material - Magnet Nd-Fe-B
Ingress Protection IP65 - Dust Tight, Water Resistant
Ratings IEC 60601-1-8
Termination Solder Eyelet(s)
Size / Dimension 1.248" L x 1.248" W (31.70mm x 31.70mm)
Height - Seated (Max) 0.650" (16.50mm)
