66ab7224566fd83964ed379a PUI Audio, Inc. 668-1226-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/66ab7226566fd83964ed37bf/as01308mr-2-r.jpg

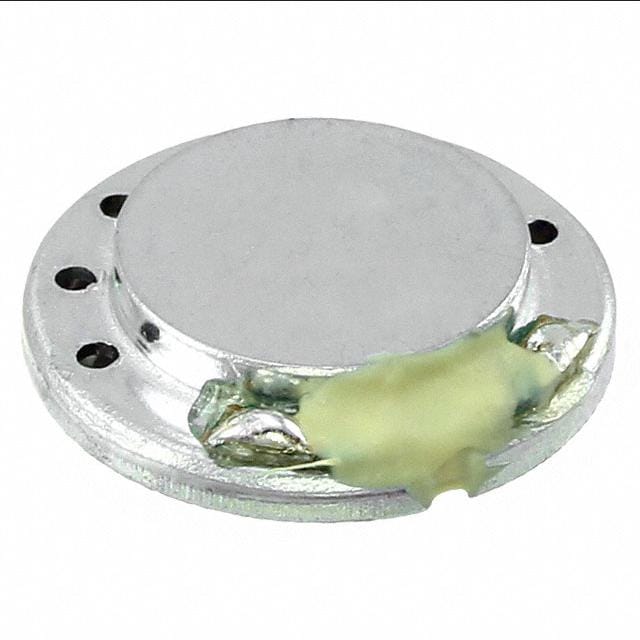

SPEAKER 8OHM 200MW TOP PORT 85DB

Product Attributes:

Series AS
Product Status Active
Technology Magnetic
Type General Purpose
Frequency Range 700 Hz ~ 5 kHz
Frequency - Self Resonant 1100Hz
Impedance 8 Ohms
Efficiency - dBA 85.00
Efficiency - Testing 100mW/100mm
Efficiency - Type Sound Pressure Level (SPL)
Power - Rated 200 mW
Power - Max 300 mW
Port Location Top
Shape Round
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Material - Magnet Nd
Ingress Protection -
Ratings -
Termination Solder Pads
Size / Dimension 0.512" Dia (13.00mm)
Height - Seated (Max) 0.118" (3.00mm)
TT-DKEY-668-1226-ND
in stock INR
PUI Audio, Inc.
1 1
PUI Audio, Inc. 668-1226-ND

PUI Audio, Inc. 668-1226-ND

Sku: TT-DKEY-668-1226-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

SPEAKER 8OHM 200MW TOP PORT 85DB

Product Attributes:

Series AS
Product Status Active
Technology Magnetic
Type General Purpose
Frequency Range 700 Hz ~ 5 kHz
Frequency - Self Resonant 1100Hz
Impedance 8 Ohms
Efficiency - dBA 85.00
Efficiency - Testing 100mW/100mm
Efficiency - Type Sound Pressure Level (SPL)
Power - Rated 200 mW
Power - Max 300 mW
Port Location Top
Shape Round
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Material - Magnet Nd
Ingress Protection -
Ratings -
Termination Solder Pads
Size / Dimension 0.512" Dia (13.00mm)
Height - Seated (Max) 0.118" (3.00mm)
