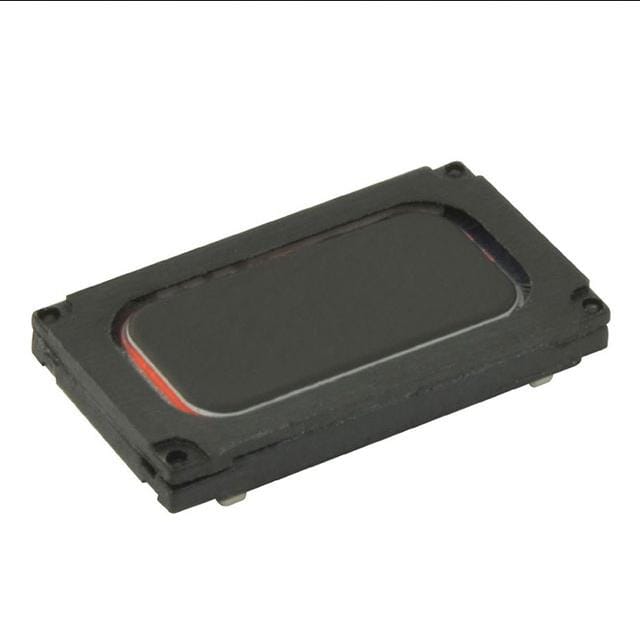

611a753df7d2b06461fe1a5e CUI Devices 2223-CMS-160925-078L100B-67-ND //cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/611a7c35e191b33695f20b4f/webp/mfg_cms-160925-078-series.jpg

16 X 9 MM, RECTANGULAR FRAME, 0.

Product Attributes:

Series CMS
Part Status Active
Technology Magnetic
Type General Purpose
Frequency Range 100 Hz ~ 20 kHz
Frequency - Self Resonant 550Hz
Impedance 8 Ohms
Efficiency - dBA 90.00
Efficiency - Testing 700mW/100mm
Efficiency - Type Sound Pressure Level (SPL)
Power - Rated 700 mW
Power - Max 1 W
Port Location Top
Shape Rectangular
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Material - Magnet Nd-Fe-B
Ingress Protection IP67 - Dust Tight, Waterproof
Ratings -
Termination Wire Leads with Connector
Size / Dimension 0.630" L x 0.354" W (16.00mm x 9.00mm)
Height - Seated (Max) 0.098" (2.50mm)
TT-DKEY-2223-CMS-160925-078L100B-67-ND
in stock INR 346.174334
CUI Devices
1 1

CUI Devices 2223-CMS-160925-078L100B-67-ND

Sku: TT-DKEY-2223-CMS-160925-078L100B-67-ND
₹346.17


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

16 X 9 MM, RECTANGULAR FRAME, 0.

Product Attributes:

Series CMS
Part Status Active
Technology Magnetic
Type General Purpose
Frequency Range 100 Hz ~ 20 kHz
Frequency - Self Resonant 550Hz
Impedance 8 Ohms
Efficiency - dBA 90.00
Efficiency - Testing 700mW/100mm
Efficiency - Type Sound Pressure Level (SPL)
Power - Rated 700 mW
Power - Max 1 W
Port Location Top
Shape Rectangular
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Material - Magnet Nd-Fe-B
Ingress Protection IP67 - Dust Tight, Waterproof
Ratings -
Termination Wire Leads with Connector
Size / Dimension 0.630" L x 0.354" W (16.00mm x 9.00mm)
Height - Seated (Max) 0.098" (2.50mm)
