66ab72f2b74ea1b064478342 CUI Devices 2223-CMS-160903-18SP-X8-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/66ab72f2b74ea1b064478373/cms-160903-18sp-x8.jpg

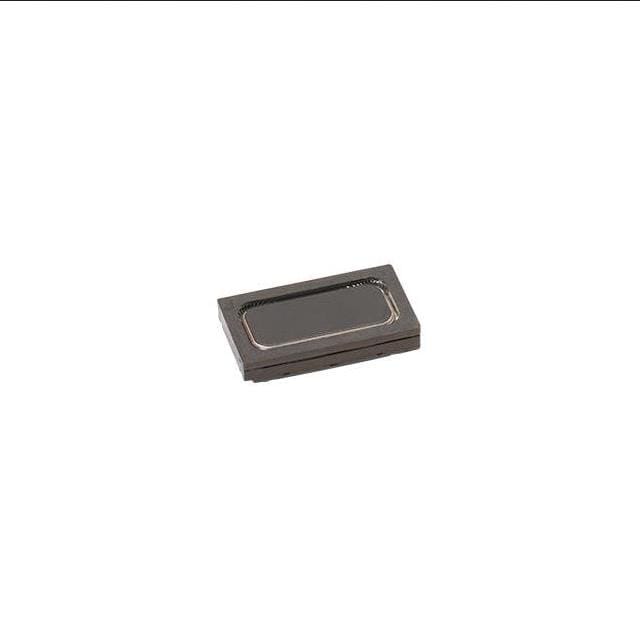

SPEAKER, 16 X 9 MM, 3 MM DEEP, P

Product Attributes:

Series CMS
Product Status Active
Technology Magnetic
Type General Purpose
Frequency Range 760 Hz ~ 20 kHz
Frequency - Self Resonant 950Hz
Impedance 8 Ohms
Efficiency - dBA 95.00
Efficiency - Testing 100mm
Efficiency - Type Sound Pressure Level (SPL)
Power - Rated 1 W
Power - Max 1.2 W
Port Location Top
Shape Rectangular
Material - Cone Polyetheretherketone (PEEK)
Material - Magnet Nd-Fe-B-N38
Ingress Protection IPX8
Ratings -
Termination Solder Pads
Size / Dimension 0.630" L x 0.354" W (16.00mm x 9.00mm)
Height - Seated (Max) 0.118" (3.00mm)
TT-DKEY-2223-CMS-160903-18SP-X8-ND
in stock INR
CUI Devices
1 1
CUI Devices 2223-CMS-160903-18SP-X8-ND

CUI Devices 2223-CMS-160903-18SP-X8-ND

Sku: TT-DKEY-2223-CMS-160903-18SP-X8-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

SPEAKER, 16 X 9 MM, 3 MM DEEP, P

Product Attributes:

Series CMS
Product Status Active
Technology Magnetic
Type General Purpose
Frequency Range 760 Hz ~ 20 kHz
Frequency - Self Resonant 950Hz
Impedance 8 Ohms
Efficiency - dBA 95.00
Efficiency - Testing 100mm
Efficiency - Type Sound Pressure Level (SPL)
Power - Rated 1 W
Power - Max 1.2 W
Port Location Top
Shape Rectangular
Material - Cone Polyetheretherketone (PEEK)
Material - Magnet Nd-Fe-B-N38
Ingress Protection IPX8
Ratings -
Termination Solder Pads
Size / Dimension 0.630" L x 0.354" W (16.00mm x 9.00mm)
Height - Seated (Max) 0.118" (3.00mm)
