611a74a1f7d2b06461fe00e3 CUI Devices 2223-CES-503528-28PM-67-ND //d2pyicwmjx3wii.cloudfront.net/s/59c9e4669bd3e7c70c5f5e6c/611a7a7e1d4d7e370df1fd88/webp/mfg_ces-503528-28pm-67.jpg

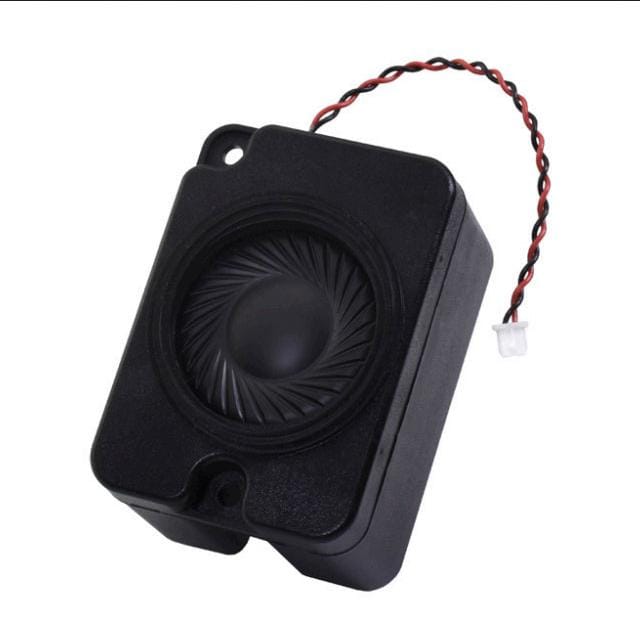

50 X 35 MM, ENCLOSED, RECTANGULA

Product Attributes:

SeriesCES
Part StatusActive
TechnologyMagnetic
TypeGeneral Purpose, Enclosure Included
Frequency Range544 Hz ~ 20 kHz
Frequency - Self Resonant680Hz
Impedance8 Ohms
Efficiency - dBA97.00
Efficiency - Testing2W/100mm
Efficiency - TypeSound Pressure Level (SPL)
Power - Rated2 W
Power - Max2.5 W
Port LocationTop
ShapeRectangular
Material - ConePolyethylenimine (PEI)
Material - MagnetNd-Fe-B
Ingress ProtectionIP67 - Dust Tight, Waterproof
Ratings-
TerminationWire Leads with Connector
Size / Dimension1.969" L x 1.378" W (50.00mm x 35.00mm)
Height - Seated (Max)1.094" (27.80mm)
TT-DKEY-2223-CES-503528-28PM-67-ND
in stockINR 975.174068
CUI Devices
1 1
CUI Devices 2223-CES-503528-28PM-67-ND

CUI Devices 2223-CES-503528-28PM-67-ND

Sku: TT-DKEY-2223-CES-503528-28PM-67-ND
₹975.17


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

50 X 35 MM, ENCLOSED, RECTANGULA

Product Attributes:

SeriesCES
Part StatusActive
TechnologyMagnetic
TypeGeneral Purpose, Enclosure Included
Frequency Range544 Hz ~ 20 kHz
Frequency - Self Resonant680Hz
Impedance8 Ohms
Efficiency - dBA97.00
Efficiency - Testing2W/100mm
Efficiency - TypeSound Pressure Level (SPL)
Power - Rated2 W
Power - Max2.5 W
Port LocationTop
ShapeRectangular
Material - ConePolyethylenimine (PEI)
Material - MagnetNd-Fe-B
Ingress ProtectionIP67 - Dust Tight, Waterproof
Ratings-
TerminationWire Leads with Connector
Size / Dimension1.969" L x 1.378" W (50.00mm x 35.00mm)
Height - Seated (Max)1.094" (27.80mm)
