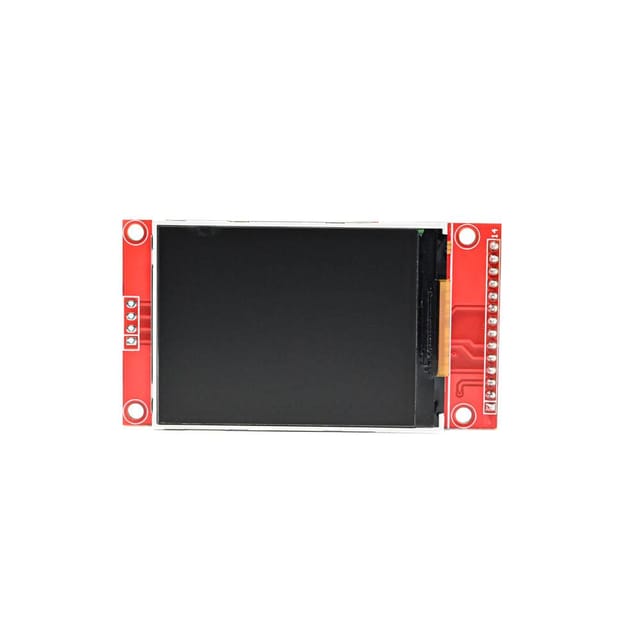

6895d47f62652c08a8ccec2d 2.4-inch SPI Interface 240×320 TFT Display Module https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6895d48062652c08a8ccec2f/dsc_2023.jpg

This 2.4-inch SPI Interface 240×320 TFT Display Module has always been one of the hot products in DIY industry and LCD is basically the necessary products during all projects, at the same time, serial port modules are also the popular ones because it takes few IO and the usage is simple. This section of the 2.4S-inch TFT LCD serial SPI integrated features of compact,

Pin Description:

  1. SDO: Serial clock output
  2. LED: 3.3V IO and Power Supply pin
  3. SCL: Serial clock input
  4. SDA / SDI: Serial data input
  5. DC: Data / Command selection
  6. RST: Reset, Low level active
  7. CS: Chip Selection, Low level active
  8. GND: Ground
  9. VDD33: 3.3V Power Supply pin
  10. UTFT Support

Features:

  1. It is a 2.4″ SPI TFT LCD  Module
  2. 10pins interface.
  3. Module supports 2GB and 4GB SD cards.
  4. The LCD drive ic is ILI9341.
  5. It’s a 240 * 320 (resolution),
  6. 2.4 inch TFT LCD screen.
  7. The LCD has a wide viewing angle, the contrast is also very suitable.
  8. The display interface is serial, it just needs 5 wires (CS, RS, SCL, SDA, RST) for controlling.
  9. SDcard use hardware SPI interface (CS / MOSI / MISO / SCK), Not solder pins.

Package Includes:

1 x 2.4-inch SPI Interface 240×320 TFT Display Module

 TT-RB-766311
in stock INR
1 1

2.4-inch SPI Interface 240×320 TFT Display Module

Sku: TT-RB-766311
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

This 2.4-inch SPI Interface 240×320 TFT Display Module has always been one of the hot products in DIY industry and LCD is basically the necessary products during all projects, at the same time, serial port modules are also the popular ones because it takes few IO and the usage is simple. This section of the 2.4S-inch TFT LCD serial SPI integrated features of compact,

Pin Description:

  1. SDO: Serial clock output
  2. LED: 3.3V IO and Power Supply pin
  3. SCL: Serial clock input
  4. SDA / SDI: Serial data input
  5. DC: Data / Command selection
  6. RST: Reset, Low level active
  7. CS: Chip Selection, Low level active
  8. GND: Ground
  9. VDD33: 3.3V Power Supply pin
  10. UTFT Support

Features:

  1. It is a 2.4″ SPI TFT LCD  Module
  2. 10pins interface.
  3. Module supports 2GB and 4GB SD cards.
  4. The LCD drive ic is ILI9341.
  5. It’s a 240 * 320 (resolution),
  6. 2.4 inch TFT LCD screen.
  7. The LCD has a wide viewing angle, the contrast is also very suitable.
  8. The display interface is serial, it just needs 5 wires (CS, RS, SCL, SDA, RST) for controlling.
  9. SDcard use hardware SPI interface (CS / MOSI / MISO / SCK), Not solder pins.

Package Includes:

1 x 2.4-inch SPI Interface 240×320 TFT Display Module
