67650162f79d9c0032ec1a2b Lumileds 1416-1912-2-ND,1416-1912-1-ND,1416-1912-6-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/67650163f79d9c0032ec1a2e/mfg_l1c1-luxeon_red.jpg

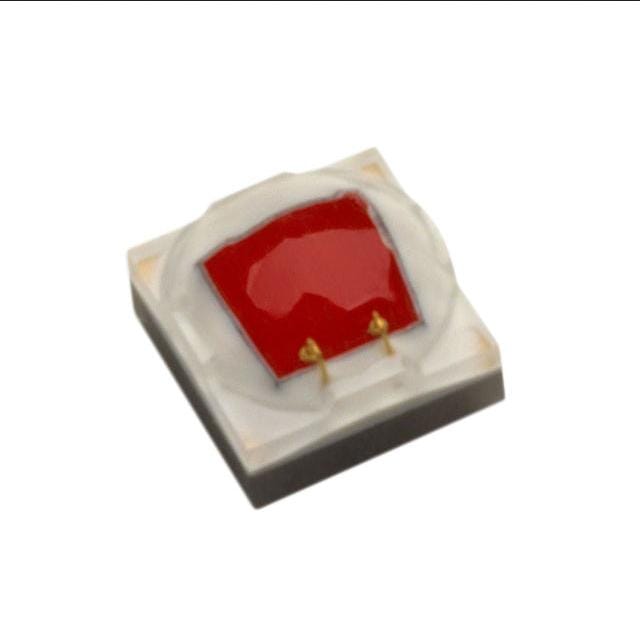

LED LUXEON C RED 629NM SMD

Product Attributes:

Series LUXEON C
Product Status Active
Color Red
Wavelength 629nm (624nm ~ 634nm)
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 2V
Lumens/Watt @ Current - Test 53 lm/W
Current - Max 1.05A
Luminous Flux @ Current/Temperature 37lm (35lm ~ 39lm)
Temperature - Test 85°C
Viewing Angle 162°
Mounting Type Surface Mount
Package / Case 0707 (1919 Metric)
Supplier Device Package SMD
Size / Dimension 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) 0.059" (1.50mm)
TT-DKEY-1416-1912-2-ND,1416-1912-1-ND,1416-1912-6-ND
in stock INR
Lumileds
1 1
Lumileds 1416-1912-2-ND,1416-1912-1-ND,1416-1912-6-ND

Lumileds 1416-1912-2-ND,1416-1912-1-ND,1416-1912-6-ND

Sku: TT-DKEY-1416-1912-2-ND,1416-1912-1-ND,1416-1912-6-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

LED LUXEON C RED 629NM SMD

Product Attributes:

Series LUXEON C
Product Status Active
Color Red
Wavelength 629nm (624nm ~ 634nm)
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 2V
Lumens/Watt @ Current - Test 53 lm/W
Current - Max 1.05A
Luminous Flux @ Current/Temperature 37lm (35lm ~ 39lm)
Temperature - Test 85°C
Viewing Angle 162°
Mounting Type Surface Mount
Package / Case 0707 (1919 Metric)
Supplier Device Package SMD
Size / Dimension 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) 0.059" (1.50mm)
