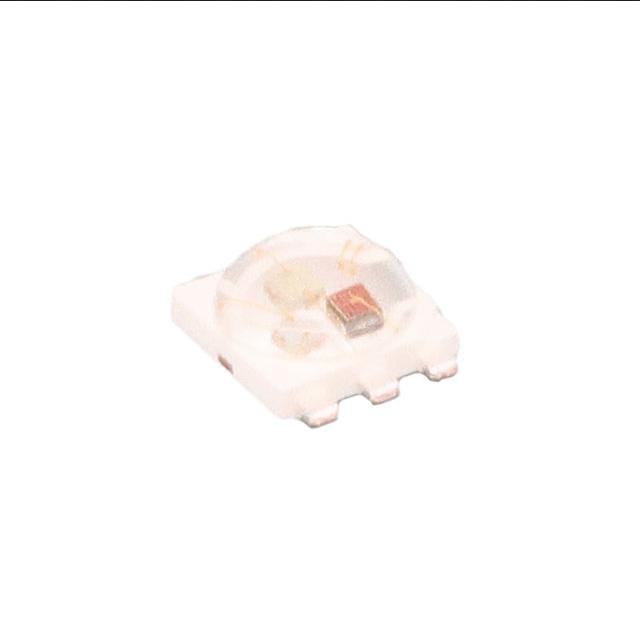

LED 1W TRI-COLOR HIGH POWER

Product Attributes:

Series -
Product Status Active
Color Red, Green, Blue (RGB)
Wavelength 623nm Red, 530nm Green, 458nm Blue
Current - Test 150mA
Voltage - Forward (Vf) (Typ) 2.2V Red, 3.1V Green, 3.0V Blue
Lumens/Watt @ Current - Test 68 lm/W Red, 74 lm/W Green, 17 lm/W Blue
Current - Max 200mA
Luminous Flux @ Current/Temperature 30lm Red, 46lm Green, 10lm Blue
Temperature - Test 25°C
Viewing Angle 155°
Mounting Type Surface Mount
Package / Case 6-SMD
Supplier Device Package -
Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.081" (2.05mm)
TT-DKEY-516-4178-2-ND,516-4178-1-ND,516-4178-6-ND
in stock INR
Broadcom Limited
1 1
Broadcom Limited 516-4178-2-ND,516-4178-1-ND,516-4178-6-ND

Broadcom Limited 516-4178-2-ND,516-4178-1-ND,516-4178-6-ND

Sku: TT-DKEY-516-4178-2-ND,516-4178-1-ND,516-4178-6-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

LED 1W TRI-COLOR HIGH POWER

Product Attributes:

Series -
Product Status Active
Color Red, Green, Blue (RGB)
Wavelength 623nm Red, 530nm Green, 458nm Blue
Current - Test 150mA
Voltage - Forward (Vf) (Typ) 2.2V Red, 3.1V Green, 3.0V Blue
Lumens/Watt @ Current - Test 68 lm/W Red, 74 lm/W Green, 17 lm/W Blue
Current - Max 200mA
Luminous Flux @ Current/Temperature 30lm Red, 46lm Green, 10lm Blue
Temperature - Test 25°C
Viewing Angle 155°
Mounting Type Surface Mount
Package / Case 6-SMD
Supplier Device Package -
Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.081" (2.05mm)
