Description

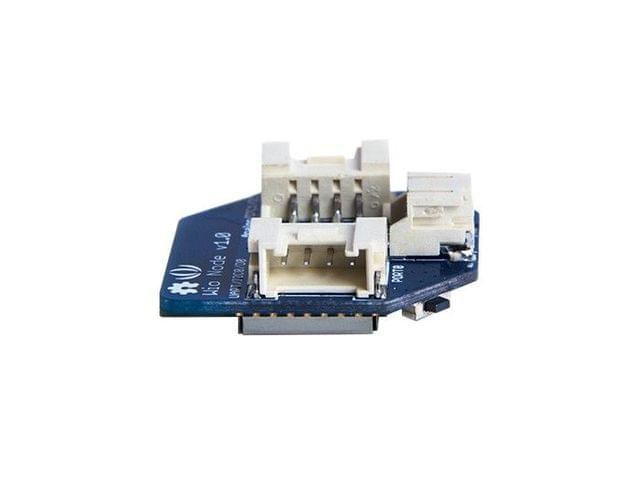

Finally,  Wio Link now has a little brother – the Wio Node.

Wio Node was born with most of the features as its elder brother:

  • An ESP8266 based open-source Wi-Fi development board

  • Supports Plug-n-Play Groves

  • Visual Configuration

  • OTA (Over-The-Air) Firmware Updates

  • RESTful APIs

  • IFTTT Application

  • Android & iOS APPs



But it is cheapersmaller and also lighter in weight.



Even though the compact design only allows Wio Node to have two Grove connectors, it still offers as many as 2 Digital I/O, 1 Analog Input, 1 UART and 2 I2C interfaces to communicate with up to 42 (and more to come) Grove modules. Setting up an IoT device with Wio Node is piece of cake as all the Grove sensor/actuator modules can be visually configured to RESTful APIs on your mobile APPs, and the physical circuit connections does not involve any bread boarding, soldering, or wire jumpers, once you finish updating the firmware over-the-air (OTA), you’ll find out it only takes you 5 minutes to build an IoT application with the Wio Node.



Owing to its low-cost, easy-to-use and compact design, Wio Node can be used to build an IoT system where a large amount of ‘things’ are required to be connected to the internet. We have provided detailed instructions and rich tutorials at http://iot.seeed.cc/ to help you getting started with your Wio Node easily and quickly. You can also find out more interesting stuff at the Wio Community, where all the Wio fans gather to share their ideas and experiences.



Features

  • Cheaper, lighter, smaller, and simpler

  • Built around ESP 8266 Wifi module

  • Supports Plug-n-Play Groves

  • Visual Configuration

  • OTA (Over-The-Air) Firmware Updates

  • RESTful APIs

  • IFTTT Application

  • Android & iOS APPs

Technical details

Dimensions28mm x28mm x6.7mm
WeightG.W 10g
BatteryExclude
Wi-Fi Network Protocol802.11b/g/n
Wi-Fi Encryption TechnologiesWEP/TKIP/AES
Expansion (2x Grove Connectors)UART0/I2C0/D0, Analog/I2C1/D1
Operating Voltage3V3
Maximum Charge Current500mA
Digital I/O Pins4
Analog Input Pins1
DC Current PER I/O PIN12mA
Flash Memory4MByte (W25Q32B)
Input Voltage
Battery holder3.0~4.2V
Micro USB5V

Part List

Wio Node1

Warning

The Wio IFTTT function is EOL. But Wio APP is available. You can use the API from Wio APP to read sensor status and control the actuator.

Thank you for your understanding.
