WiFi3 click

Description of product

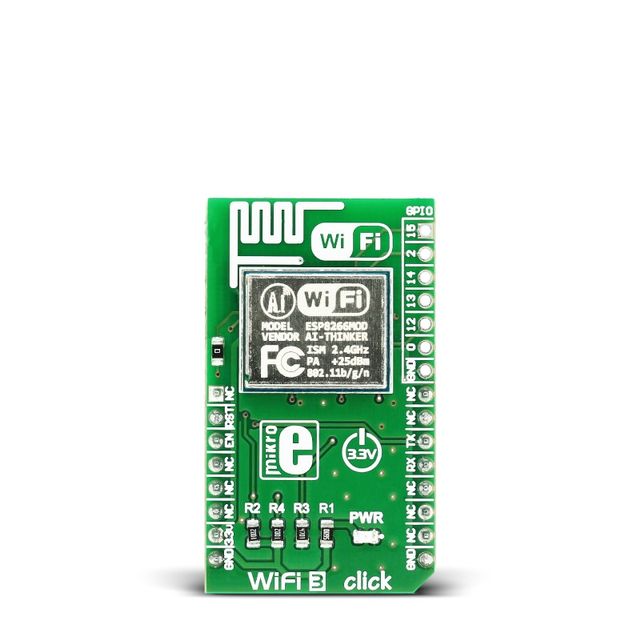

WiFi3 click is a complete self-contained WiFi solution carrying the ESP8266 module with a system on a chip. The click is designed to run on a 3.3V power supply only. It communicates with the target board microcontroller through the mikroBUS™ RX, TX, CS and RST lines.

ESP8266 WiFi module

The module supports standard IEEE802.11 b/g/n agreement and has an integrated TCP/IP protocol stack.

It also integrates antenna switches, an RF balun, power amplifier, low noise receive amplifier, power management modes and more.

The Standby power consumption of < 1.0mW is ideally suited for IoT projects and devices that need long battery life.

Ideally suited for IoT applications

WiFi3 click is ideally suited for IoT applications. The System on Chip offloads all the networking functions from the MCU. You can integrate it with sensors and actuators through its GPIOs and connect your things to the internet with minimum development effort.

PCB antenna

WiFi3 click features a PCB trace antenna, designed for the 2400–2483.5 MHz frequency band.

Key features

  • PCB trace antenna
  • ESP8266 WiFi module
    • 802.11 b/g/n
    • Integrated low power 32-bit MCU
    • Integrated 10-bit ADC
    • Integrated TCP/IP protocol stack
    • Wi-Fi 2.4 GHz, support WPA/WPA2
  • Interface: RX, TX, CS, RST
  • 3.3V power supply
SPECIFICATION

TypeWi-Fi
ApplicationsWiFi3 click makes it very simple to connect various “things” to the internet. Whether that “thing” is a simple LED, a data logger, or or any other type of sensor or switch in a smarthome
On-board modulesESP8266
Key FeaturesIntegrated TCP/IP stack. PCB antenna
Key BenefitsAdditional GPIO pins for connecting external electronics. Minimal software requirements for target board
InterfaceUART,GPIO
Input Voltage3.3V
CompatibilitymikroBUS
Click board sizeM (42.9 x 25.4 mm)

DOCUMENTATION

Pinout diagram

This table shows how the pinout on WiFi3 click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes                  Pin                 Mikrobus logo.png
mikroBUStm
Pin      Notes
Not connectedNC1ANPWM16NCNot connected
Reset moduleRST2RSTINT15NCNot connected
EnableEN3CSTX14TXUART Transmit
Not connectedNC4SCKRX13RXUART Receive
Not connectedNC5MISOSCL12NCNot connected
Not connectedNC6MOSISDA11NCNot connected
Power supply+3.3V73.3V5V10NCNot connected
GroundGND8GNDGND9GNDGround

Programming

Code examples for WiFi3 click, written for MikroElektronika hardware and compilers are available on Libstock.

Code snippet

The following code snippet shows the interrupt routine for receiving characters from the WiFi3 module.

01 void UART3_Interrupt() iv IVT_INT_USART3 ics ICS_AUTO
02 {
03     tmp = UART3_Read();
04     switch(tmp)
05     {
06     case LF:
07         if(data_len > 1)
08         {
09             data_ready = 1;
10         }
11         break;
12     case CR:
13         rx_buff[data_len] = 0;
14         break;
15     default:
16         rx_buff[data_len] = tmp;
17         data_len++;
18     }
19 }
