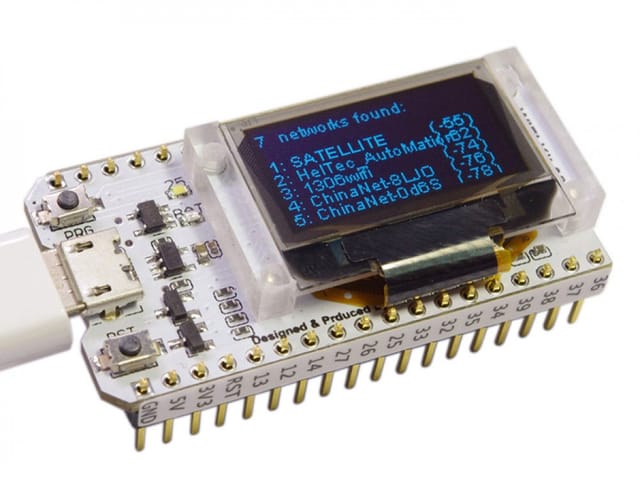

61737d5ee26b8b8830239eeb OLED WIFI Kit 32 https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/61737d540838d0590ebee798/oled-wifi-kit-32.jpg

Description:

OLED WIFI Kit 32 is the new development of the cost-effective networking program, the main chip using Espressif ESP32, Tensilica LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / n HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode Bluetooth (traditional Bluetooth and BLE low power Bluetooth). Onboard 32MByte Flash, Wi-Fi antenna, 0.96-inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, perfect support for Arduino development environment.

Features:

  • Main chip: espressif esp32
  • OLED size and color: 0.96 inch blue
  • Operating voltage: 3.3V to 7V
  • Operating temperature range: -40 °C to + 90 °C
  • Supports Sniffer, Station, softAP and Wi-Fi Direct modes
  • Data rate: 150 Mbps @ 11n HT40,72 Mbps @ 11n HT20,54 Mbps @ 11g, 11 Mbps @ 11b
  • Transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n
  • Receiver sensitivity up to - 98 dBm
  • UDP continues to throughput by 135 Mbps

Package List:

  • 1 x OLED WIFI Kit 32

Documents:

TT-MF-MCC32KESP
in stockINR 2424.4
Makerfabs
1 1
OLED WIFI Kit 32

OLED WIFI Kit 32

Sku: TT-MF-MCC32KESP
₹2,424.4


Sold By: tenettech
Features
  • Shipping in 10-12 Working days

Description of product

Description:

OLED WIFI Kit 32 is the new development of the cost-effective networking program, the main chip using Espressif ESP32, Tensilica LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / n HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode Bluetooth (traditional Bluetooth and BLE low power Bluetooth). Onboard 32MByte Flash, Wi-Fi antenna, 0.96-inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, perfect support for Arduino development environment.

Features:

  • Main chip: espressif esp32
  • OLED size and color: 0.96 inch blue
  • Operating voltage: 3.3V to 7V
  • Operating temperature range: -40 °C to + 90 °C
  • Supports Sniffer, Station, softAP and Wi-Fi Direct modes
  • Data rate: 150 Mbps @ 11n HT40,72 Mbps @ 11n HT20,54 Mbps @ 11g, 11 Mbps @ 11b
  • Transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n
  • Receiver sensitivity up to - 98 dBm
  • UDP continues to throughput by 135 Mbps

Package List:

  • 1 x OLED WIFI Kit 32

Documents:
