Description

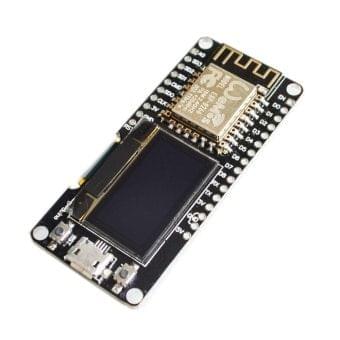

Wemos Nodemcu ESP8266 Wifi 0.96 Inch OLED Board development board integrates the ESP8266 0.96 Inch OLED having a resolution of 128x64. OLED is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode a next generation of flat-panel displays.

Overview

• ESP8266 + 0.96" OLED

• Compatible with Arduino & NodeMCU

• Micro USB connection

• Input Power: 5V

• OLED resolution: 128x64

Features

• All ESP8266 pins broken out

• Integrated 0.96″ OLED

• Micro USB connection

• Compatible with Arduino

• Compatible with NodeMCU(Lua for ESP8266)

Specification

• 12 digital pins

• 1 analog input

• Input Power is 5V

• OLED resolution: 128x64

• Weight: 12 g

Application

• This product is very useful for small projects because there is no need to do connection between esp8266 and OLED.

Pinouts

Package Includes

• 1 x Wemos Nodemcu ESP8266 Wifi + 0.96 Inch OLED Board Wireless/IoT Application

• 1 x 10 Pin

• 1 x 16 Pin
