5d5bc7b6c15861199c6e56ef SmartElex GPS Data Logger Shield for Arduino https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5d5bc7b6c15861199c6e56ef/images/5d5bc7b6c15861199c6e56f0/5d5bc6fe4b0bae144418af6d/5d5bc6fe4b0bae144418af6d.jpg

Description

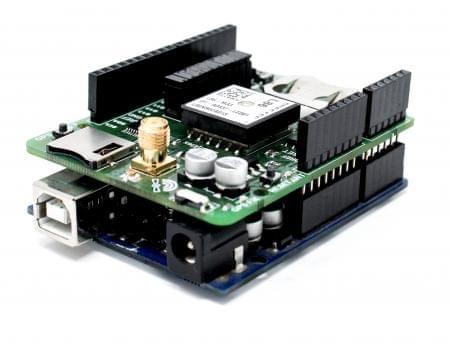

The All new GPS shield from SmartElex made to work great with your either UNO or Leonardo Arduinos and is designed to log data to an SD card. Or you can leave the SD card out and use the GPS for a geocaching project. This shield comes with most popular Quectel L86 Module

If your project is going to be inside the enclosure, you’ll love this shield as it has external antenna support. Simply connect an External active GPS Antenna to antenna connector on the shield and the module will automatically switch over to use the antenna. You can then place the antenna wherever you wish.

Note: In this shield, GPS Serial communication pins can be switched between Arduino hardware serial pins D1, D0 and for software serial library D9, D8 by DPDT Switch.

Pin Configurations
Jumper Pin Name Arduino Pins
J1 SCK D13
J2 MISO D12
J3 MOSI D11
J4 F_ON D10
J5 SW_TX D9
J6 SW_RX D8
J7 GPS_RST D7
J8 CS D4
J9 HW_TX D1
J10 HW_RX D0





Features

  1. The multi-GNSS engine for GPS, GLONASS, Galileo, and QZSS.
  2. Embedded patch antenna.
  3. Automatic antenna switching function.
  4. High sensitivity: -167dBm @Tracking, -149dBm @Acquisition
  5. 99 acquisition channels, 33 tracking channels
  6. Balloon mode, for high altitude up to 80km
  7. Support DGPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)
  8. Great anti-jamming performance due to multi-tone active interference canceller
  9. Support SDK command developed by Quectel
 TT-PSK-524
in stock INR
Arduino
1 1
SmartElex GPS Data Logger Shield for Arduino

SmartElex GPS Data Logger Shield for Arduino

Sku: TT-PSK-524
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working days
  • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5d5bc7b6c15861199c6e56ef/images/5d5bc7b6c15861199c6e56f3/5d5bc72cc15861199c6e3a03/5d5bc72cc15861199c6e3a03.jpg

Description of product

Description

The All new GPS shield from SmartElex made to work great with your either UNO or Leonardo Arduinos and is designed to log data to an SD card. Or you can leave the SD card out and use the GPS for a geocaching project. This shield comes with most popular Quectel L86 Module

If your project is going to be inside the enclosure, you’ll love this shield as it has external antenna support. Simply connect an External active GPS Antenna to antenna connector on the shield and the module will automatically switch over to use the antenna. You can then place the antenna wherever you wish.

Note: In this shield, GPS Serial communication pins can be switched between Arduino hardware serial pins D1, D0 and for software serial library D9, D8 by DPDT Switch.

Pin Configurations
Jumper Pin Name Arduino Pins
J1 SCK D13
J2 MISO D12
J3 MOSI D11
J4 F_ON D10
J5 SW_TX D9
J6 SW_RX D8
J7 GPS_RST D7
J8 CS D4
J9 HW_TX D1
J10 HW_RX D0





Features

  1. The multi-GNSS engine for GPS, GLONASS, Galileo, and QZSS.
  2. Embedded patch antenna.
  3. Automatic antenna switching function.
  4. High sensitivity: -167dBm @Tracking, -149dBm @Acquisition
  5. 99 acquisition channels, 33 tracking channels
  6. Balloon mode, for high altitude up to 80km
  7. Support DGPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)
  8. Great anti-jamming performance due to multi-tone active interference canceller
  9. Support SDK command developed by Quectel
