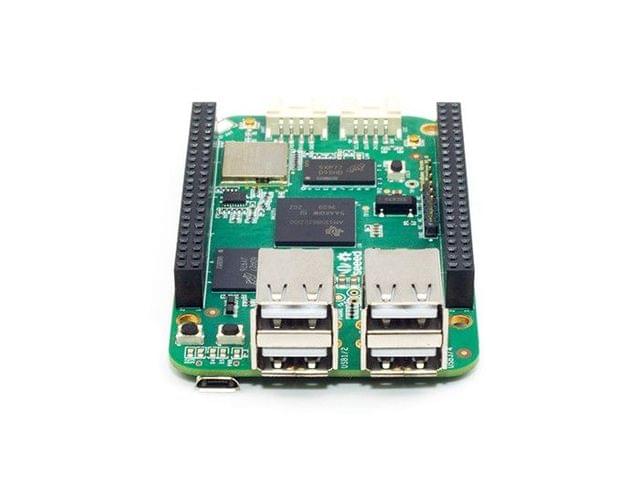

Seeed Studio BeagleBone® Green Wireless Development Board(TI AM335x WiFi+BT)

Description of product

Description





Seeed Studio BeagleBone® Green Wireless is a joint effort by BeagleBoard.org and Seeed Studio. Based on the open-source hardware design of BeagleBone® Black, the newest Seeed Studio BeagleBone® Green Wireless has added two Grove connectors, making it easier to connect to the large family of Grove sensors. It is the first Wi-Fi + Bluetooth Low Energy (BLE) board from BeagleBone®community.



Features

  • The first Wi-Fi + Bluetooth Low Energy (BLE) board from BeagleBone® community

  • Built-in 2.4 GHz TI WLinkTM8 Module with two antenna solution

  • On-board chip antenna

  • IEEE 802.11b/g/n compliant

  • FCC, CE, and TELEC certified

  • Supports AP+STA mode of communication

  • Comply with Bluetooth Advanced Audio Distribution Profile (A2DP)

  • Supports MRAA library



Boards Comparison

BeagleBone® Black

MSRP: USD 55

Seeed Studio BeagleBone® Green

MSRP: USD 44

Seeed Studio BeagleBone® Green Wireless

MSRP: USD 52.9

AM3358 1GHz ARM® Cortex-A8AM3358 1GHz ARM® Cortex-A8AM3358 1GHz ARM® Cortex-A8
512MB DDR3 RAM512MB DDR3 RAM512MB DDR3 RAM
4GB 8-bit eMMC on-board flash storage4GB 8-bit eMMC on-board flash storage4GB 8-bit eMMC on-board flash storage
3D graphics accelerator3D graphics accelerator3D graphics accelerator
NEON floating-point acceleratorNEON floating-point acceleratorNEON floating-point accelerator
2x PRU 32-bit microcontrollers2x PRU 32-bit microcontrollers2x PRU 32-bit microcontrollers
USB client for power & communicationsUSB client for power & communicationsUSB client for power & communications
1x USB host1x USB host4x USB2.0 host
EthernetEthernetWi-Fi 802.11b/g/n 2.4GHz and Bluetooth 4.1 LE
2x46 pin headers2x 46 pin headers2x 46 pin headers
HDMI port2x Grove connectors2x Grove connectors

Technical details

Dimensions126mm x76mm x24mm
WeightG.W 88g
BatteryExclude
ProcessorAM335x 1GHz ARMR Cortex-A8
RAM512MB DDR3
on-board Flash Storage4GB eMMC
CPU SupportsNEON floating-point & 3D graphics accelerator
Micro USB Supportspowering & communications
USB4 x USB2.0 Host
Grove Connectors2 x (One I2C and One UART)
GPIO2 x 46 pin headers
EthernetWi-Fi 802.11b/g/n 2.4GHz and Bluetooth 4.1 LE
Operating Temperature0 ~ 75℃
