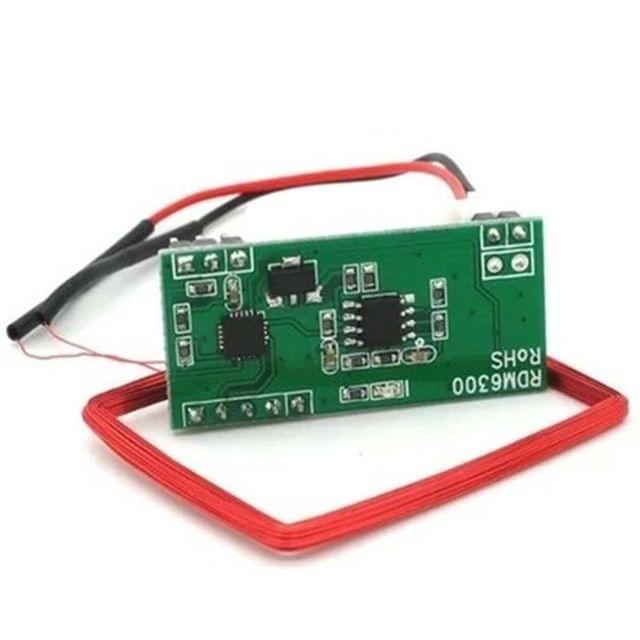

5d5f8b1c53a6766f741a7b1d RDM6300 125KHz EM4100 RFID Card ID Reader Module Range 5cm Range https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5d5f8b1c53a6766f741a7b1d/images/5d5f8b1c53a6766f741a7b1e/5d5f8ac1a710c501d5b879de/webp/5d5f8ac1a710c501d5b879de.jpg

Description:

RDM6300 125KHz EM4100 RFID Card ID Reader Module is designed for reading code from 125KHz card compatible read-only tags and read/write the card. It can be applied in office/home security, personal identification, access control, anti-forgery, interactive toy and production control systems etc. RDM6300 Series non contact RFID module, use the advanced RF receiving circuit and embedded MCU design, combing with high efficient decoding algorithm, to finish the data receive of EM4100 and all the compatible cards. This is a very popular RFID card read module for arduino users, it can read 125K EM4100 series RFID card. This module is easy to use, serial port connect to arduino MCU after power up, when RFID card enter into card reading range, this module will send the card number to arduino by UART You can further connect relay arduino shield to your arduino in order to enable the simple door keeper controlling system.

Specifications:

  • Operating Frequency: 125KHZ

  • Baud Rate: 9600

  • Interface: TTL level RS232 format

  • Working voltage: DC 5V(+/-5%)

  • Working current: <50mA

  • Receive distance: 20~50mm

  • Working temperature: -10°C~+70°C

  • Storage temperature: -20°C~+80°C

  • Humidity: 0~95%

  • Dimension (mm): 38.5 x 20

  • Weight: 7g

TT-PSB-602
in stockINR 310
