Sku: TT-909-ESP32-POE-ISO
₹3,584


Sold By: tenettech
Features
  • Shipping in 10-12 Working days

Description of product

Description:

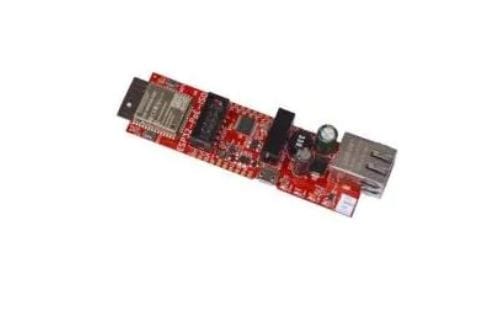

Olimex Ltd. ESP32-POE IoT Development Boards are powered by Si3402-B chip that is IEEE 802.3-compliant with pre-standard (legacy) PoE support. These development boards feature ESP32-WROOM-32 WiFi and Bluetooth module and Ethernet 100Mb interface with IEEE 802.3 PoE support. The ESP32-POE boards draw power from the Ethernet cables and can be expanded with sensors and actuators.
Features:
  • ESP32-WROOM-32 WiFi and Bluetooth module
  • Ethernet 100Mb interface with IEEE 802.3 PoE support
  • Micro USB connector for ESP32 programming
  • MicroSD card working in 1bit mode (3 more GPIOs)
  • LiPo battery charger with LiPo battery connector
  • Two extension connectors, 0.1" step spaced at 1"
  • UEXT connector
  • User button and reset button
  • ESP32-POE-ISO:
    • Low power design: 200µA consumption in deep sleep
    • 3000VDC galvanic insulation between the PoE Ethernet part and board's power supply circuit
    • Battery level monitor pin on ADC
    • DC-DC 2W 5V/400mA
    • External power supply detection pin on ADC
  • PCB dimensions:
    • 75mm x 28mm ~ (3" x 1") (ESP32-POE/- EA)
    • 100mm x 28mm ~ (4" x 1") (ESP32-POE-ISO)

Datasheets: WiFi Development Tools (802.11)Pdf
