67dc07279fb5980024e2058e Panasonic Electronic Components PCE5016TR-ND,PCE5016CT-ND,PCE5016DKR-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/67dc07289fb5980024e20597/eee-ft1h470ap.jpg

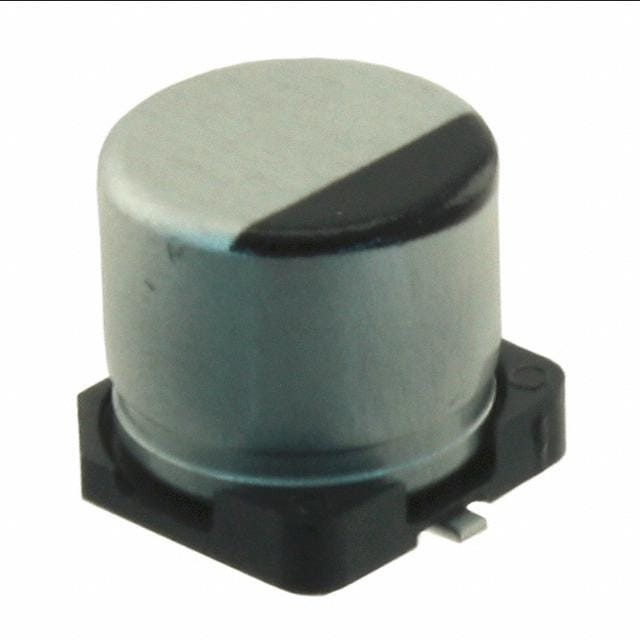

CAP ALUM 100UF 20% 35V SMD

Product Attributes:

Series FT
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) 260mOhm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 195 mA @ 120 Hz
Ripple Current @ High Frequency 300 mA @ 100 kHz
Impedance -
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
TT-DKEY-PCE5016TR-ND,PCE5016CT-ND,PCE5016DKR-ND
in stock INR
Panasonic Electronic Components
1 1
Panasonic Electronic Components PCE5016TR-ND,PCE5016CT-ND,PCE5016DKR-ND

Panasonic Electronic Components PCE5016TR-ND,PCE5016CT-ND,PCE5016DKR-ND

Sku: TT-DKEY-PCE5016TR-ND,PCE5016CT-ND,PCE5016DKR-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

CAP ALUM 100UF 20% 35V SMD

Product Attributes:

Series FT
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) 260mOhm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 195 mA @ 120 Hz
Ripple Current @ High Frequency 300 mA @ 100 kHz
Impedance -
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
