67dc0732203849003e90ec12 Nichicon 493-2194-2-ND,493-2194-1-ND,493-2194-6-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/67dc0733203849003e90ec15/wtpercent2cudpercent20seriespercent2010-0percent2c10-0.jpg

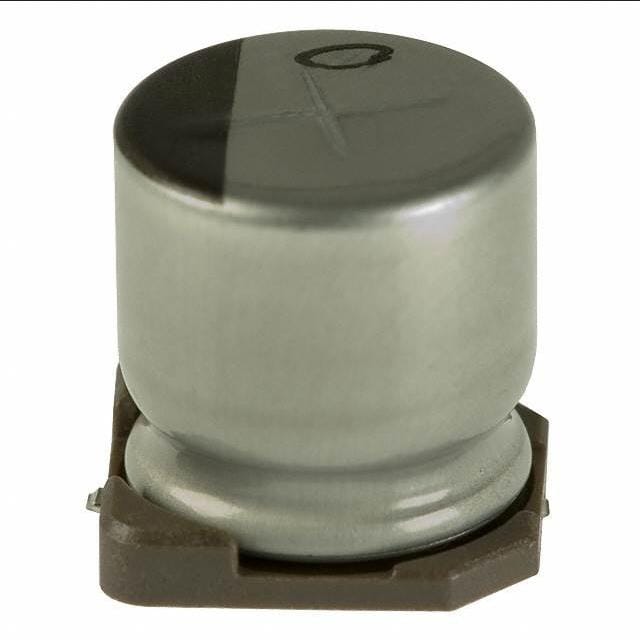

CAP ALUM 470UF 20% 25V SMD

Product Attributes:

Series UWT
Product Status Active
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications General Purpose
Ripple Current @ Low Frequency 300 mA @ 120 Hz
Ripple Current @ High Frequency 450 mA @ 10 kHz
Impedance -
Lead Spacing -
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
TT-DKEY-493-2194-2-ND,493-2194-1-ND,493-2194-6-ND
in stock INR
Nichicon
1 1
Nichicon 493-2194-2-ND,493-2194-1-ND,493-2194-6-ND

Nichicon 493-2194-2-ND,493-2194-1-ND,493-2194-6-ND

Sku: TT-DKEY-493-2194-2-ND,493-2194-1-ND,493-2194-6-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

CAP ALUM 470UF 20% 25V SMD

Product Attributes:

Series UWT
Product Status Active
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications General Purpose
Ripple Current @ Low Frequency 300 mA @ 120 Hz
Ripple Current @ High Frequency 450 mA @ 10 kHz
Impedance -
Lead Spacing -
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
