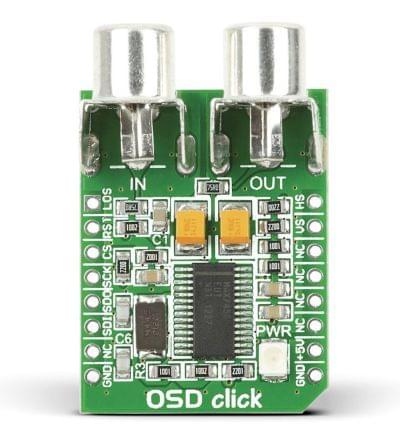

OSD Click features MAX7456 single-channel monochrome OSD module with integrated EEPROM memory as well as two RCA sockets. It is used to create on-screen menus and other video overlays, such as custom graphics, company logo, time and date using 256 user-programmable characters or pictographs. It is NTSC and PAL compatible and displays up to 16 rows x 30 characters. MAX7456 has internal sync generator. OSD Click™ communicates with target microcontroller via mikroBUS™ SPI (SDI, SDO, SCK, CS#), RST, LOS, HSYNC and VSYNC lines. The board is designed to use 5V power supply only. LED diode (Green) indicates the presence of power supply.

TT-MK-MIKROE-1366
in stock INR 4610.496
MIKROELECTRONICA
1 1

OSD click

Sku: TT-MK-MIKROE-1366
₹4,610.5


Sold By: tenettech
Features
  • Shipping in 10-12 Working days
  • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5aa3b09d696d0cb57a5a4396/images/5aa3b09d696d0cb57a5a4397/5aa3b08ebd7e6785c6ebe859/5aa3b08ebd7e6785c6ebe859.jpg

Description of product

Description

OSD Click features MAX7456 single-channel monochrome OSD module with integrated EEPROM memory as well as two RCA sockets. It is used to create on-screen menus and other video overlays, such as custom graphics, company logo, time and date using 256 user-programmable characters or pictographs. It is NTSC and PAL compatible and displays up to 16 rows x 30 characters. MAX7456 has internal sync generator. OSD Click™ communicates with target microcontroller via mikroBUS™ SPI (SDI, SDO, SCK, CS#), RST, LOS, HSYNC and VSYNC lines. The board is designed to use 5V power supply only. LED diode (Green) indicates the presence of power supply.
