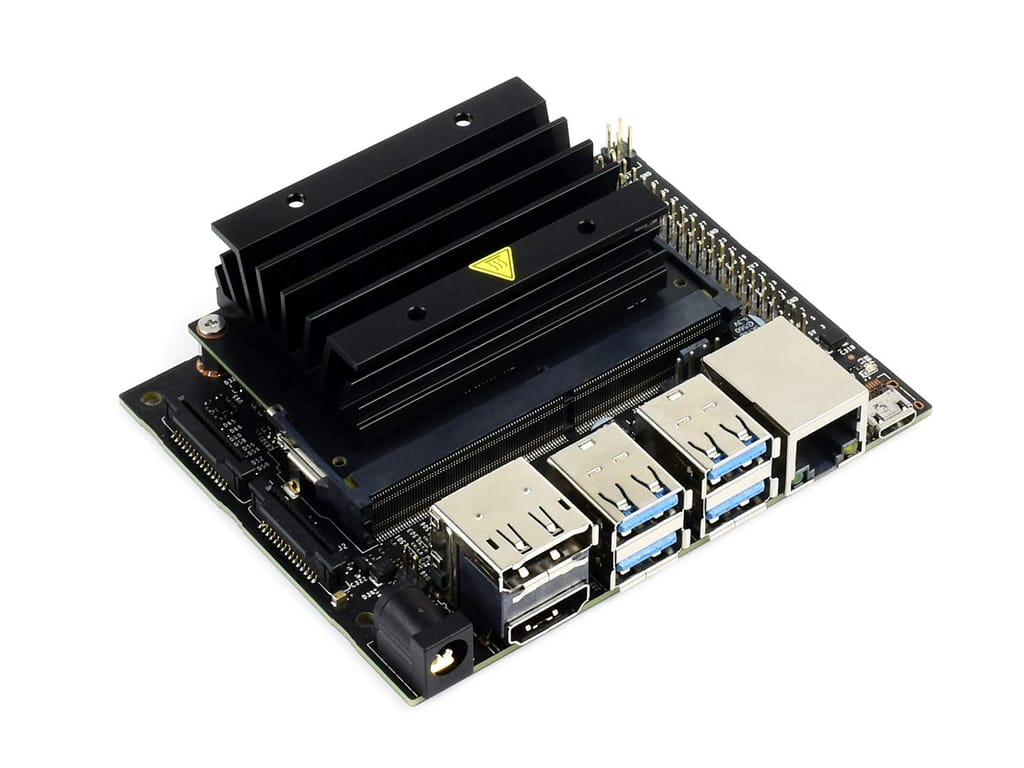

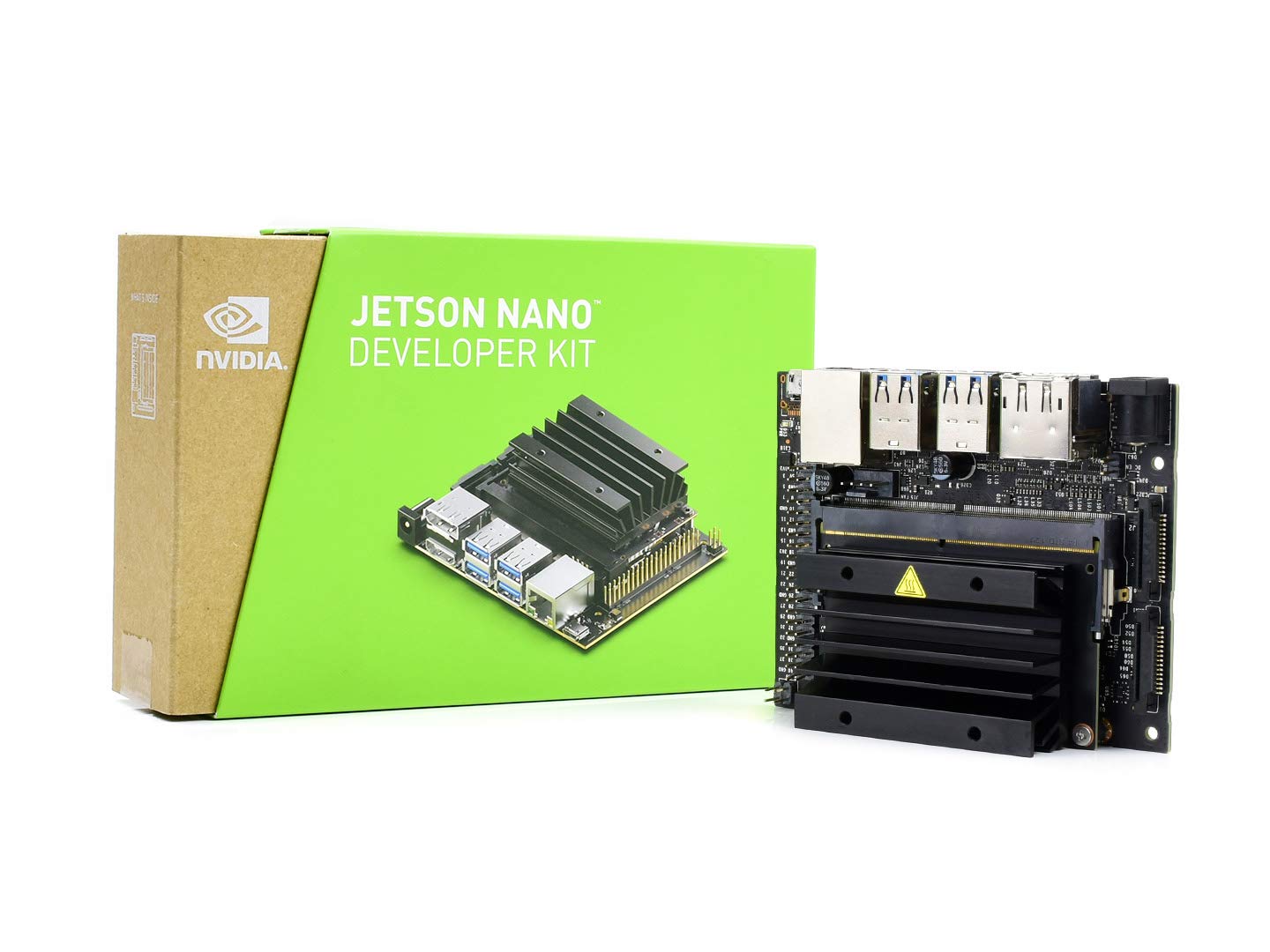

NVIDIA Jetson Nano Developer Kit - B01

Description of product

Description:

NVIDIA Jetson Nano Developer Kit is a small, powerful computer that lets you run multiple neural networks in parallel for applications like image classification, object detection, segmentation, and speech processing with affordable Price. All in an easy-to-use platform that runs in as little as 5 watts.

Jetson Nano delivers 472 GFLOPS for running modern AI algorithms fast, with a quad-core 64-bit ARM CPU, a 128-core integrated NVIDIA GPU, as well as 4GB LPDDR4 memory. It runs multiple neural networks in parallel and processes several high-resolution sensors simultaneously.

  1. Micro SD card slot: insert a 16GB or larger TF card for main storage and writing system image
  2. 40-pin expansion header
  3. Micro USB port: for 5V power input or for USB data transmission
  4. Gigabit Ethernet port: 10/100/1000Base-T auto-negotiation
  5. 4x USB 3.0 port
  6. HDMI output port
  7. DisplayPort connector
  8. DC jack: for 5V power input
  9. 2x MIPI CSI camera connector

Specifications:

GPU128-core Maxwell
CPUQuad-core ARM A57 @ 1.43 GHz
MEMORY4 GB 64-bit LPDDR4 25.6 GB/s
STORAGEmicro SD card (NOT included.)
VIDEO ENCODER4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265)
VIDEO DECODER4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30 (H.264/H.265)
CAMERA2x MIPI CSI-2 DPHY lanes
CONNECTIVITYGigabit Ethernet, M.2 Key E expansion connector (Recommendation: AC8265 Dual-mode NIC)
DISPLAYHDMI and DP
USB4x USB 3.0, USB 2.0 Micro-B
EXTENSION INTERFACESGPIO, I2C, I2S, SPI, UART
