MYS-SAM9X25 Single Board Computer

Description of product

MYS-SAM9X25 Single Board Computer | ATMEL SAM9X25 ARM9 SBC Board-Welcome to MYIR

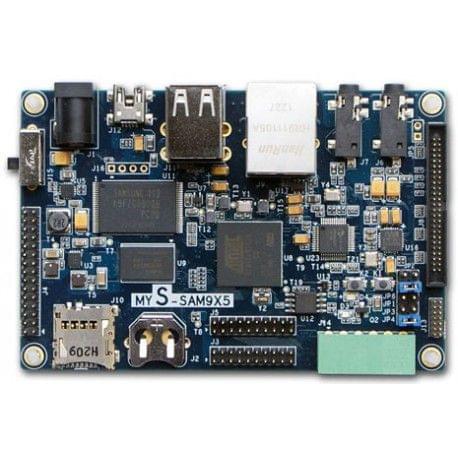

The MYS-SAM9X25 is a single board computer among the MYS-SAM9X5 SBC board series based on Atmel AT91SAM9X25 ARM9 processor which is capable of working at up to 400MHz.



The MYS-SAM9X25 carries 128MB DDR2 SDRAM, 256MB Nand Flash, 4MB Data Flash and 64KB EEPROM. It features rich periphery interfaces including serial port, USB, Ethernet, two CAN, Micro SD, Audio, RTC, JTAG, SPI, GPIO, etc.



The MYS-SAM9X25 SBC Board support Linux 2.6.39 and Andriod 2.3.5 with delivered drivers. It is also provided with sample codes in KEIL’s MDK-ARM project to help help users on non-OS development. The delivery package includes necessary cables and accessories, detailed documents and software package. MYIR also offers optional WiFi, Camera, GPS and GPRS modules for this board. This SBC board is an ideal evaluation kit to help users start development quickly and make solution out of the boxes easily.



The MYS-SAM9X25 is in smart size but features rich peripheries  so as good to apply in many fields including industrial control, medical instruments, automation, security device, measurement instruments etc.

MYS-SAM9X25 Single Board Computer | ATMEL SAM9X25 ARM9 SBC Board-Welcome to MYIR

Product Features

Processor
  • Atmel AT91SAM9X25 (pin-to-pin compatible with Atmel AT91SAM9G15, SAM9G25, SAM9G35 and SAM9X35)
    - 400MHz ARM926-based embedded microprocessor unit
    - 16 KB Data Cache, 16KB Instruction Cache
    - 32KB Chip SRAM, 64KB ROM

Memory and Storages

  • External Memory: 128MB DDR2 SDRAM, 256MB Nand Flash, 4MB Data Flash and 64KB EEPROM
  • 1 x Micro SD Card slot

Peripheral Interfaces

  • Debug serial port (J13)
  • RS232 serial port (UART0, J13)
  • Two high-speed USB Host ports
  • One Mini USB OTG port
  • One 10/100Mpbs Ethernet
  • Two CAN interfaces
  • One Audio input port (3.5mm Jack)
  • One stero Audio output port (3.5mm Jack)
  • RTC Battery socket
  • One JTAG interface (J13)
  • One power indicator (Red LED)
  • One User LED (Blue)
  • Three expansion interfaces (J3, J4 and J5) brings out interfaces below, some are multi-plexed:
    3 x UARTs (UART1, 2, 3), 2 x SPI, 2 x I2C, 12 x ADC, 54 x GPIO

Mechanical Parameters

  • Dimension:  100mm x 64mm
  • PCB layers:  8-layer design
  • Power supply: 5V/2A or USB Power supply
  • Working temp.: 0~70 Celsius or -40~85 Celsius
    Note: Our products are delivered of commercial grade (0~70 Celsius) by default.  Anyhow the MYS-SAM9X5 board based on Atmel ARM9 processor can work for industrial applications working in harsh environment with working temperature ranging from -40 Celsius to 85 Celsius.  Please contact us for price and availability of products of industrial grade if you needed.

OS support and Sample codes

  • Linux 2.6.39
  • Andriod 2.3.5
  • Keil MDK-ARM example code


Relative Download and Links

1ATMEL SAM9G15 Datasheet8.02 MB
2ATMEL SAM9G25 Datasheet5.84 MB
3ATMEL SAM9G35 Datasheet8.27 MB
4ATMEL SAM9X25 Datasheet7.6 MB
5ATMEL SAM9X35 Datasheet8.6 MB
6MYS-SAM9X5 Single Board Computer Overview575 KB
7Build Linux Environment Based on Virtualbox1.77 MB
8Compare with other SBC types in MYS-SAM9X5 series

Price and Ordering



Item

Part No.

Unit Price

Ordering

MYS-SAM9X25 Single Board Computer

MYS-9X25-256N128D-C

USD125

MY-WF003U USB WiFi Module (optional)MY-WF003UUSD25
MY-CAM001U USB Camera Module (optional)MY-CAM001UUSD29
MY-CU005U USB 3G Module (optional)MY-CU005UUSD69
MY-GPS008C GPS Module (optional)MY-GPS008CUSD49
MY-GPRS007C GPRS Module (optional)MY-GPRS007CUSD49

Note:

1. Discount is available for mass orders. Please contact MYIR for inquiries.

2. All prices above are for boards of commercial grade (0~70 Celsius). If customer needs boards of industrial grade (-40~85 Celsius), please inquiry MYIR for availability and prices.

Packing List

NO.ItemQtyDescription
1MYS-SAM9X25 board1pcMYS-SAM9X25 Single Board Computer
2USB Cable1pc
3Serial cable1pcDB9 to DB9
4Ethernet Cable1pc
5Conversion board

1pc

JTAG and UART conversion board
6DVD1pcuser manual, schematic in PDF format, datasheet, software package
