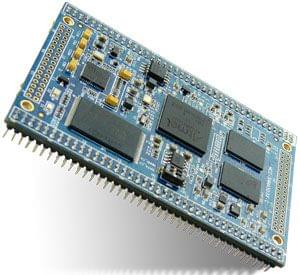

MCC-SAMA5D3X-C CPU Module

Description of product

MCC-SAMA5D3X-C CPU Module | Atmel SAMA5D3 SoM, ARM Cortex-A5, Linux Controller Board-Welcome to MYIR



The MCC-SAMA5D3X-C CPU Module is an industrial SOM (System-on-Module) equipped with Atmel’s ARM Cortex-A5 SAMA5D3 series microprocessors which can operate at up to 536MHz. The module integrates the core components on board including 256MB DDR2 SDRAM, 256MB Nand Flash, 4MB Data Flash, 64KB EEPROM and Gigabit Ethernet PHY. It has two 2.0mm pitch 80-pin male pin header connectors and two 2.0mm pitch 34-pin pin header interfaces to bring out all the I/O signals from the CPU Module. It is a Linux and Android ready-to-run module and supports -40 to +85 Celsius Extended Temperature Operation for Industrial Applications.


MCC-SAMA5D3X CPU Module



The MCC-SAMA5D3X-C series CPU Modules allow five selections of Atmel SAMA5D31, SAMA5D33, SAMA5D34, SAMA5D35 and SAMA5D36 processors. All five modules are sharing the same circuit design with minor configuration settings. The MCC-SAMA5D3X-C CPU Module series have following models:

MCC-SAMA5D31-C CPU Module for Atmel SAMA5D31

MCC-SAMA5D33-C CPU Module for Atmel SAMA5D33

MCC-SAMA5D34-C CPU Module for Atmel SAMA5D34

MCC-SAMA5D35-C CPU Module for Atmel SAMA5D35

MCC-SAMA5D36-C CPU Module for Atmel SAMA5D36



The main differences can be seen from below table. MYIR deliveries the MCC-SAMA5D36-C model by default.

Item

MCC-SAMA5D31-C

MCC-SAMA5D33-C

MCC-SAMA5D34-C

MCC-SAMA5D35-C

MCC-SAMA5D36-C

Processor

ATSAMA5D31

ATSAMA5D33

ATSAMA5D34

ATSAMA5D35

ATSAMA5D36

10/100M Ethernet

1

0

0

1

1

10/100/1000M Ethernet

0

1

1

1

1

UART

7

5

5

7

7

LCD

1

1

1

0

1

CAN

0

0

2

2

2


Customers can design their own base board using MYIR’s MCC-SAMA5D3X-C CPU modules as the core components to extend peripheral functions by headers to connectors on their base boards. MYIR also designed one base board for customers’ evaluation, prototype and creating applications. The development board is called MYD-SAMA5D3X-C which is using the MCC-SAMA5D3X-C as controller board and extends many of peripherals on the base board.



MYD-SAMA5D3X-C Development Board

Features

Mechanical Parameters

  • Dimensions: 82mm x 55mm
  • PCB Layers: 8-layer design
  • Power supply: +3.3V/2A
  • Working temperature: -40~85 Celsius

Processor

  • Atmel SAMA5D31, SAMA5D33, SAMA5D34, SAMA5D35, SAMA5D36
    - ARM Cortex-A5 processor, operates at up to 536MHz (850DMIPS)
    - 16KB data Cache,16KB instruction Cache
    - 32 Kbyte Data Cache, 32 Kbyte Instruction Cache, Virtual Memory System Architecture (VMSA)
    - Fully Integrated MMU and Floating Point Unit (VFPv4)
    - 128KB of SRAM and 160KB of ROM

Memory

  • 256MB DDR2 SDRAM (512MB is compatible)
  • 256MB Nand Flash
  • 4MB Data Flash
  • 64KB EEPROM

Peripherals and Signals Routed to Pins

  • On-board Gigabit Ethernet PHY
  • One power indicator (Red LED)
  • One user LED (Blue)
  • Two 2.0mm pitch 80-pin male pin headers and two 2.0mm pitch 34-pin expansion interfaces can carry out peripherals below:
    - 1 x Gigabit Ethernet
    - 3 x USB (2 x high-speed USB Host, 1 x Mini USB Host/Device)
    - Up to 7 x Serial ports
    - 2 x I2C
    - 2 x CAN
    - 1 x SPI
    - 12 x ADC (12-bit)
    - BUS (can be extended to 16-bit Data Bus and 8-bit Address Bus)

OS Support

  • Linux 3.6.9
  • Android 4.0.4





Hardware Features

    The Atmel® SAMA5D3 series of microprocessor units (MPUs) is based on the ARM® Cortex™-A5 processor, operating at up to 536MHz (850DMIPS) at under 150mW, delivering a high-performance, low-power platform for cost-sensitive industrial and consumer applications. It has comprehensive peripheral set for connectivity and user interface applications including Gigabit and 10/100 Ethernet, up to three HS USB ports, dual CAN, three SDIO/SD/MMC, UARTs, SPIs, TWIs, soft modem, LCD controller with graphics accelerator, camera interface, 12-bit ADC, 32-bit timers and more. Figure 1-3 SAMA5D3 Series Key Features The MYD-SAMA5D3X series development boards include one CPU module mounted on one base board. It exposes many of the Atmel SAMA5D3 features to the user in support of developing specific solutions.


    SAMA5D3 Series Key Features



    MCC-SAMA5D3X-C Function Block Diagram






    Dimensions of MCC-SAMA5D3X-C


    Software Features

    MYIR has provided software packages on Linux and Android operating systems for the MCC-SAMA5D3X-C CPU Modules. Please see the features below:

    OS

    Item

    Features

    Description

    Linux

    Boot

    Boot Strap

    First boot program (source code available)

    u-boot

    Secondary boot program (source code available)

    Boot Mode

    Boot Linux from NAND Flash

    Image update

    Support programming kernel image into Nand Flash through USB

    File system update

    Support programming file system into Nand Flash through USB

    Kernel

    Version

    Linux 3.6.9 (source code available)

    File system

    Supports ROM/CRAM/EXT2/EXT3/FAT/NFS/ JFFS2/UBIFS

    File system

    Format

    UBIFS file system

    Drivers

    LED, NandFlash, DataFlash, SD, SPI, CAN, LCD+Touch, Audio, Ethernet, USB, GPIO, Button, RS485, RTC, USART
    (source code available)

    Demo program

    Audio, CAN, RS232, RS485, RTC, GPIO, network, mtd, key_led

    Graphical Library

    QT/Embeded 4.5.3

    Already ported (source code available)

    Android

    Kernel

    Version

    Android 4.0.4

    Drivers

    SD, LCD+touch (LCD and touch screen driver), Audio, Ethernet, USB, Button

    Relative Download and Links

    You can download relative chip datasheet, products datasheet, user manual, software package from below. Any inquiry, please contact MYIR.

    1MCC-SAMA5D3X-C CPU Module Overview1.01 MB
    2MYD-SAMA5D3X-C Development Board Overview1.05 MB
    3MCC-SAMA5D3X-C Dimensions126 KB
    4MYD-SAMA5D3X-C Base Board Dimensions123 KB



    Price and Ordering

    Item

    Part No.

    Unit Price

    Ordering

    MCC-SAMA5D36-C CPU Module
    (256MB DDR2, 256MB Nand Flash, Industrial grade)

    MYC-CA5D36-256N256D-I

    USD75

    MCC-SAMA5D36-C CPU Module
    (512MB DDR2, 256MB Nand Flash, commercial grade)
    MYC-CA5D36-256N512D-CUSD90

    MCC-SAMA5D36-C CPU Module
    (512MB DDR2, 256MB Nand Flash, industrial grade)
    MYC-CA5D36-256N512D-IUSD110

    MYD-SAMA5D36-C Development Board
    (512MB DDR2, 256MB Nand Flash, industrial grade)
    MYD-CA5D36-256N512D-IUSD199

    Note:

    1. Discount is available for mass orders. Please contact MYIR for inquiries.

    2. If you need boards with other CPU model or DDR2/Flash size, please inquire MYIR for availability and prices.

    Packing List

    NO.ItemQtyDescription
    1MCC-SAMA5D3X-C CPU Module1pcMCC-SAMA5D36-C
    2MYD-SAMA5D3X-C development board (optional)1pcMYD-SAMA5D36-C development board
    3MY-LCD43TP 4.3-inch LCD Module (optional)1pc4.3-inch LCD Module with resistive touch screen
    4MY-LCD70TP 7-inch LCD Module (optional)1pc7-inch LCD Module with resistive touch screen
    5DVD1pcone product DVD disk
