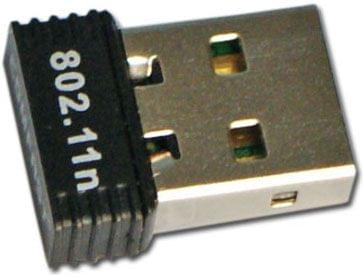

5b9b4b0bfd627ec13f398dc3 MY-WF003U USB WiFi Module https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b9b4b0bfd627ec13f398dc3/images/5b9b4b0bfd627ec13f398dc4/5b9b4ad1932641c252595086/webp/5b9b4ad1932641c252595086.jpg

Description

MY-WF003U USB WiFi Module for MYIR's ARM Development Boards-Welcome to MYIR

The MY-WF003U is a USB based WiFi Module released by MYIR specially for working on MYIR's ARM development boards. It is relying on the WiFi IEEE 802.11b/g/n standards and its network speed can achieve 150Mbps when using the IEEE 802.11n standard. It is connected with other terminals through a USB2.0 Host port to build a wireless network.

MY-WF003U USB WiFi Module for MYIR's ARM Development Boards-Welcome to MYIR

Features

Item

Parameters

Dimensions19.00mm (L) * 14.00mm (W) * 5.00mm (H)
InterfaceUSB2.0 High-speed Host port
Frequency Band2.4 – 2.4835GHz
Wireless standardIEEE 802.11b: 11Mbps
IEEE 802.11g: 54Mbps
IEEE 802.11n: 150Mbps
Transmission power20dBm (MAX EIRP)
Modulation typeOFDM/CCK/16-QAM/64-QAM
Work patternsAd-Hoc Infrastructure
Working Temp.-10 ~ +60°C
OS supportLinux

Board Products Supporting List

The MY-WF003U USB WiFi Module can support working with following MYIR's board products:



NO.

Processor

Products

1Atmel SAM9G15MYD-SAM9G15 / MYD-SAM9G15-V2
2Atmel SAM9G25MYD-SAM9G25 / MYD-SAM9G25-V2
3Atmel SAM9G35MYD-SAM9G35 / MYD-SAM9G35-V2
4Atmel SAM9X25MYD-SAM9X25 / MYD-SAM9X25-V2
5Atmel SAM9X35MYD-SAM9X35 / MYD-SAM9X25-V2
5Atmel SAMA5D31MYD-SAMA5D31
6Atmel SAMA5D33MYD-SAMA5D33
7Atmel SAMA5D34MYD-SAMA5D34
8Atmel SAMA5D35MYD-SAMA5D35
9Atmel SAMA5D36MYD-SAMA5D36
10TI AM335xMYD-AM335X

TT-MT-069
in stockINR 3637
MYIR
1 1
