M16+ ADPII, AVR Development Board

Description of product

Description

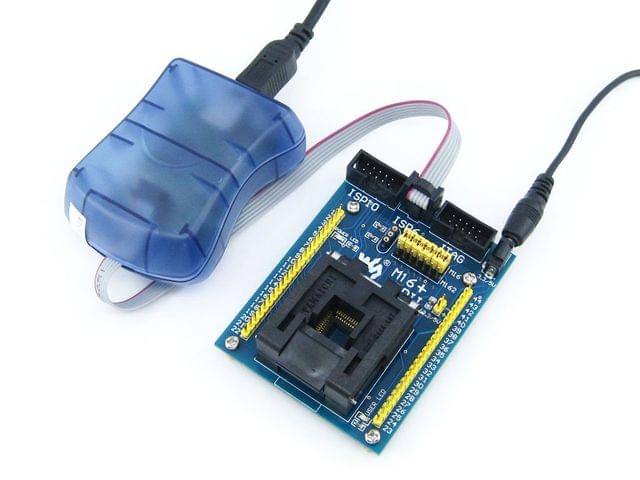

Yamaichi IC Test & Burn-in Socket with a simple board, especially for AVR TQFP44 package

Features

  • 10-pin/6-pin ISP Port for programming or testing
  • External crystal can be connected via on board socket
  • All the MCU pins are accessible on expansion connectors
  • Supports two classes of devices
    • ATmega16 series
    • ATmega162 series

Supported Devices

ATmega16 TQFP44 package and other pinout compatible devices of the sort

  • ATmega16 / ATmega32 / ATmega8535
  • ATmega16A / ATmega32A
  • ATmega164P / ATmega324P / ATmega644P / ATmega1284P

ATmega162 TQFP44 package and other pinout compatible devices of the sort

  • ATmega162 / ATmega8515
