5d70c761914bdd0b687a7c31 STK64+ Premium, AVR Development Board https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5d70c761914bdd0b687a7c31/images/5d70c761914bdd0b687a7c36/5d70c708c37c8f0bd0187a8e/5d70c708c37c8f0bd0187a8e.jpg

Description

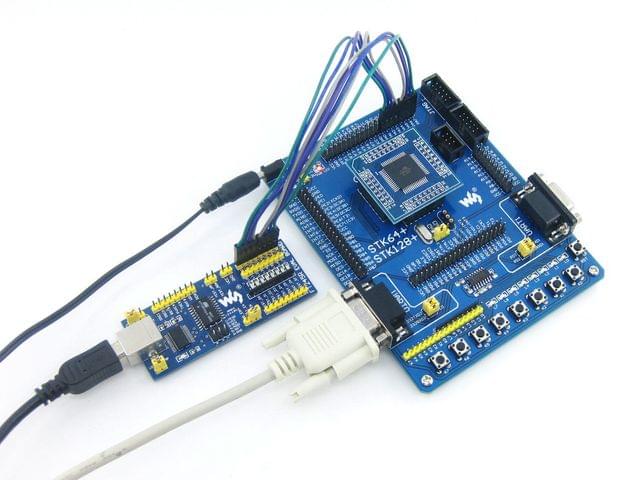

The STK64+ is a complete, cost-effective development board for the ATmega64. It is designed to give designers a quick start to develop code on ATmega64 MCU and makes them develope prototype device easily.

The ATmega64 chip is mounted on a device board, which can be separated from the mother board. Hence, easily changing MCU is supported. The ATmega64 chip is in TQFP64 package and will randomly be ATmega64-16AU or ATmega64L-8AU or ATmega64A-AU.

The STK64+ Standard package comes with an ATmega64 device board, while the STK64+ Premium package comes with the standard package, an additional spare ATmega64 device board, and an Experiment Fittings Pack.

Features

  • Power
    • Powered from external 5V power supply
    • Jumper for configuring voltage level to be applied, 5V/3.3V
  • Onboard Chips
    • ATmega64 (TQFP64), MCU, mounted on the device board
    • AMS1117-3.3, on board regulator
    • MAX3232, True RS232 Transceivers
  • Interfaces
    • Two RS232 connector for UART0 and UART1, DB9 standard
      • Guaranteed to operate under 3V level supply thanks to the MAX3232
      • UART0 and UART1 jumpers, short the jumper to connect UART to AVR MCU, open the jumper to vacate the I/O ports.
    • 6-pin / 10-pin ISP port
    • JTAG port
  • Human to Machine Interface
    • RESET button, used to reset the MCU
    • Power indicator LED
    • 8 surface mounted LEDs, can be used as I/O status indicator
    • 8 Push-buttons, for analog input

Other Features

  • Crystal configurable, there is a jumper for selecting on board 7.3728M crystal or external crystal mounted via the socket
  • All the MCU pins are accessible on expansion connectors for further expansion
  • All the pins are marked on the board. These marks describe the function of each pin
  • Compatible with several AVR MCUs:
    • Fully compatible with: ATmega64/ATmega128
    • Partly compatible with: ATmega1281/ATmega2561, AT90CAN32/AT90CAN64/AT90CAN128



Package Includes

  1. STK64+ (with an ATmega64 device board)
  2. USB power cable
  3. 4-pin wire x 2
  4. 2-pin wire x 2
  5. User Guide CD
  6. Spare ATmega64 device board
  7. Experiment Fittings Pack
TT-WSB-3030
in stockINR 5043.32
Waveshare
1 1
STK64+ Premium, AVR Development Board

STK64+ Premium, AVR Development Board

Sku: TT-WSB-3030
₹5,043.32


Sold By: tenettech
Features
  • Shipping in 10-12 Working days
  • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5d70c761914bdd0b687a7c31/images/5d70c761914bdd0b687a7c32/5d70c6f0914bdd0b687a6fc4/5d70c6f0914bdd0b687a6fc4.jpg

Description of product

Description

The STK64+ is a complete, cost-effective development board for the ATmega64. It is designed to give designers a quick start to develop code on ATmega64 MCU and makes them develope prototype device easily.

The ATmega64 chip is mounted on a device board, which can be separated from the mother board. Hence, easily changing MCU is supported. The ATmega64 chip is in TQFP64 package and will randomly be ATmega64-16AU or ATmega64L-8AU or ATmega64A-AU.

The STK64+ Standard package comes with an ATmega64 device board, while the STK64+ Premium package comes with the standard package, an additional spare ATmega64 device board, and an Experiment Fittings Pack.

Features

  • Power
    • Powered from external 5V power supply
    • Jumper for configuring voltage level to be applied, 5V/3.3V
  • Onboard Chips
    • ATmega64 (TQFP64), MCU, mounted on the device board
    • AMS1117-3.3, on board regulator
    • MAX3232, True RS232 Transceivers
  • Interfaces
    • Two RS232 connector for UART0 and UART1, DB9 standard
      • Guaranteed to operate under 3V level supply thanks to the MAX3232
      • UART0 and UART1 jumpers, short the jumper to connect UART to AVR MCU, open the jumper to vacate the I/O ports.
    • 6-pin / 10-pin ISP port
    • JTAG port
  • Human to Machine Interface
    • RESET button, used to reset the MCU
    • Power indicator LED
    • 8 surface mounted LEDs, can be used as I/O status indicator
    • 8 Push-buttons, for analog input

Other Features

  • Crystal configurable, there is a jumper for selecting on board 7.3728M crystal or external crystal mounted via the socket
  • All the MCU pins are accessible on expansion connectors for further expansion
  • All the pins are marked on the board. These marks describe the function of each pin
  • Compatible with several AVR MCUs:
    • Fully compatible with: ATmega64/ATmega128
    • Partly compatible with: ATmega1281/ATmega2561, AT90CAN32/AT90CAN64/AT90CAN128



Package Includes

  1. STK64+ (with an ATmega64 device board)
  2. USB power cable
  3. 4-pin wire x 2
  4. 2-pin wire x 2
  5. User Guide CD
  6. Spare ATmega64 device board
  7. Experiment Fittings Pack
