5e0daac87291df2578e650cb Antenna GSM- 2dBi Sticker https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5e0daac87291df2578e650cb/images/5e0daac87291df2578e650ce/5e0daabf2e797625772127af/5e0daabf2e797625772127af.jpg

Description

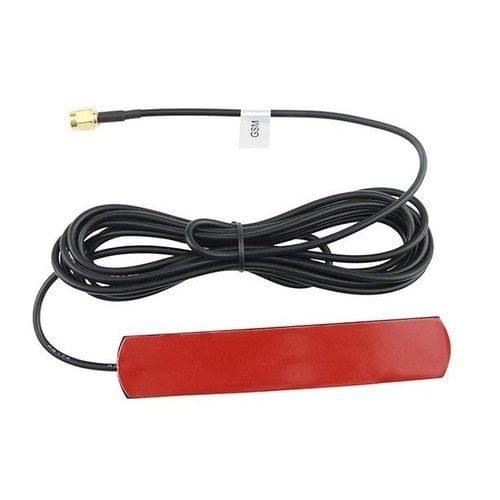

 Antenna GSM- 2DBI Sticker is a Quad-band antenna for embedded cellular devices.

This antenna will allow you to connect your cellular module to the outside world. Operates on four frequencies. Comes with a 3M adhesive backing for mounting. Standard male SMA terminated.

This antenna is compatible with SIM900A and SIM808.

Key Specifications

  •    Quad-band: 850/900/1800/1900MHz and 2.4GHz
  •     For GSM/GPRS, CDMA/1X, TDMA/AMPs, CDPD, 2 Way pager Re-Flex


Electrical Properties

  •     Frequency range: 824 ~ 960 MHz / 1710 ~ 1990 MHz
  •     Impedance: 50 Ohm nominal
  •     VSWR: <2.0 : 1
  •     Gain: 3.5dBi
  •     Radiation: Omni
  •     Polarization: Vertical
  •     Wave: Half Wave Dipole


Mechanical Properties

  •     Size: 115x22x4mm
  •     Connector SMA (Male) standard
  •     Cable: RG174
  •     Cable length: 3m
  •     Over-mold housing: ABS Black
  •     Mounting: Adhesive backing
  •     Operation Temperature: -40 to 85C
TT-PLK-8443
in stockINR
GENERIC
1 1
Antenna GSM- 2dBi Sticker

Antenna GSM- 2dBi Sticker

Sku: TT-PLK-8443
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working days
  • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5e0daac87291df2578e650cb/images/5e0daac87291df2578e650cc/5e0daab76adcf7792f4be5a1/5e0daab76adcf7792f4be5a1.png

Description of product

Description

 Antenna GSM- 2DBI Sticker is a Quad-band antenna for embedded cellular devices.

This antenna will allow you to connect your cellular module to the outside world. Operates on four frequencies. Comes with a 3M adhesive backing for mounting. Standard male SMA terminated.

This antenna is compatible with SIM900A and SIM808.

Key Specifications

  •    Quad-band: 850/900/1800/1900MHz and 2.4GHz
  •     For GSM/GPRS, CDMA/1X, TDMA/AMPs, CDPD, 2 Way pager Re-Flex


Electrical Properties

  •     Frequency range: 824 ~ 960 MHz / 1710 ~ 1990 MHz
  •     Impedance: 50 Ohm nominal
  •     VSWR: <2.0 : 1
  •     Gain: 3.5dBi
  •     Radiation: Omni
  •     Polarization: Vertical
  •     Wave: Half Wave Dipole


Mechanical Properties

  •     Size: 115x22x4mm
  •     Connector SMA (Male) standard
  •     Cable: RG174
  •     Cable length: 3m
  •     Over-mold housing: ABS Black
  •     Mounting: Adhesive backing
  •     Operation Temperature: -40 to 85C
