The ADS1118 is a precision, low power, 16-bit analog-to-digital converter (ADC) that provides all features necessary to measure the most common sensor signals in an ultra-small, leadless X2QFN-10 package or a VSSOP-10 package. The ADS1118 integrates a programmable gain amplifier (PGA), voltage reference, oscillator, and high-accuracy temperature sensor. These features, along with a wide power supply range from 2 V to 5.5 V, make the ADS1118 ideally suited for power- and space-constrained, sensor measurement applications.

The ADS1118 can perform conversions at data rates up to 860 samples per second (SPS). The PGA offers input ranges from ±256 mV to ±6.144 V, allowing both large and small signals to be measured with high resolution. An input multiplexer (MUX) allows measuring two differential or four single-ended inputs. The high-accuracy temperature sensor can be used for system-level temperature monitoring or cold-junction compensation for thermocouples.

Features:

• Working Voltage: 2 V to 5.5 V
• Channel: 4 single-ended input or 2 differential input
• Bit Rate: 16 bit
• Internal Temperature Sensor: 0.5°C (Maximum) Error: 0°C to 70°C

Package List:

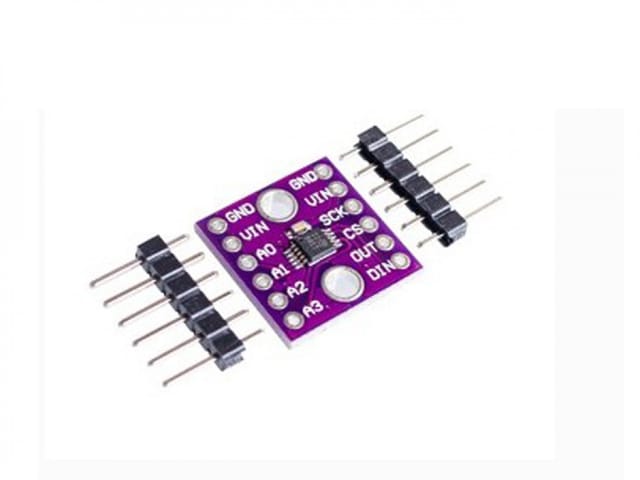

• 1 x ADS1118 - 16 Bit ADC Module

Documents:

• ADS1118 Datasheet
