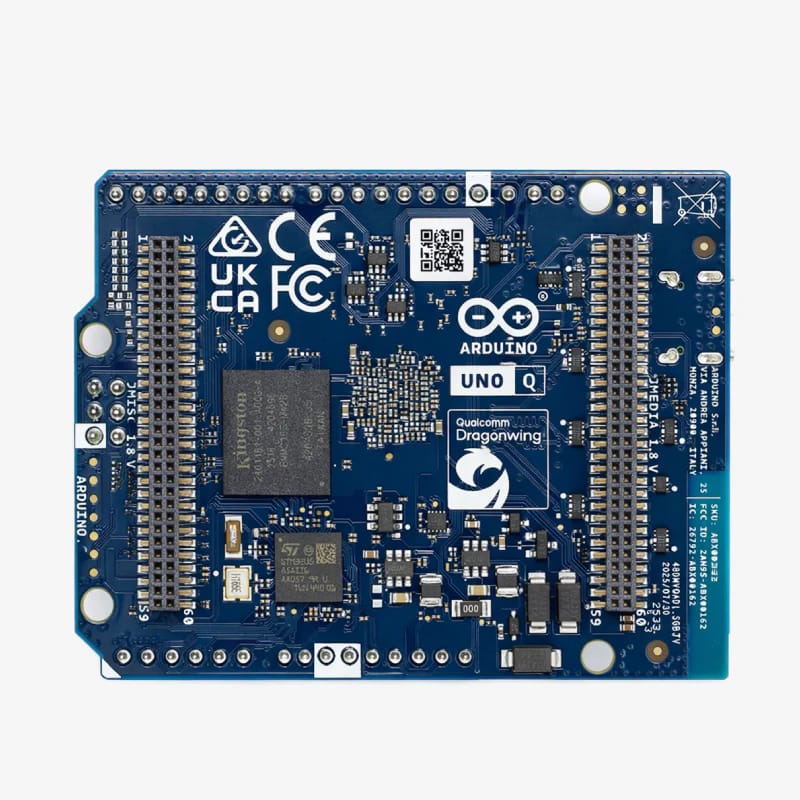

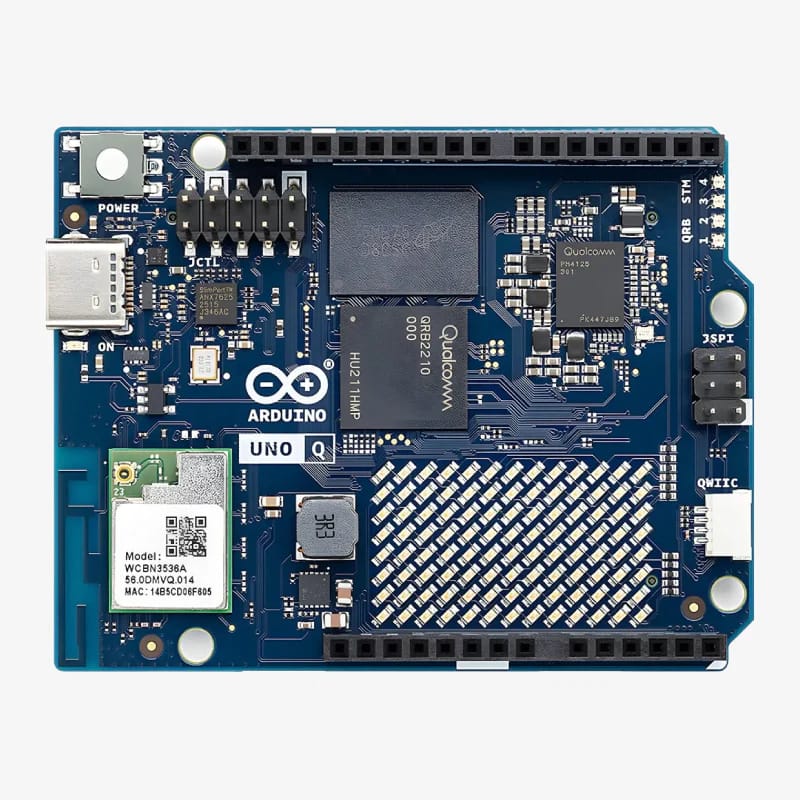

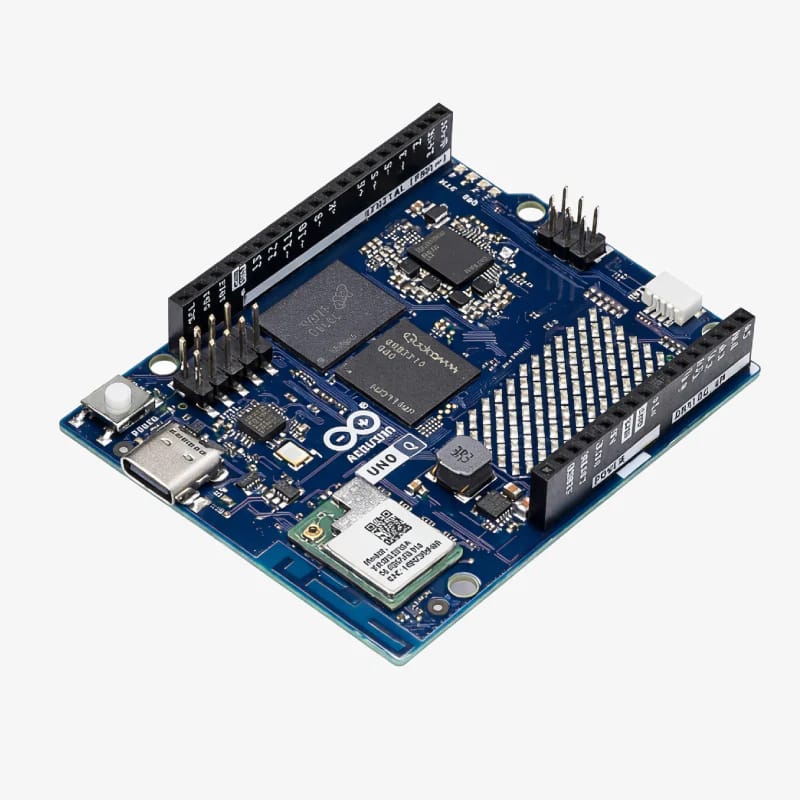

The Official Arduino UNO Q 2GB Single Board Computer ABX00162 is a powerful hybrid development platform that combines a quad-core Arm Cortex-A53 processor with an integrated STM32U585 microcontroller, delivering Linux computing performance alongside real-time control capabilities. Designed for AI, IoT, robotics, and advanced embedded system applications, it offers seamless dual-environment development for both high-level and low-level programming. With advanced Adreno graphics, onboard eMMC storage, wireless connectivity, and integrated AI support, the UNO Q 2GB enables developers to run Linux applications, Arduino sketches, and Python scripts simultaneously, making it ideal for intelligent edge devices and smart automation systems.

Features:

1. Combines Qualcomm Dragonwing QRB2210 (MPU) + STM32U585 MCU for hybrid Linux + real-time processing
2. Supports real-time object, sound, and motion recognition with pre-loaded AI models
3. Run Arduino sketches, Python scripts, and Linux applications simultaneously via Arduino App Lab
4. Dual-band Wi-Fi 5 (2.4/5 GHz) and Bluetooth 5.1 built-in
5. Supports advanced peripherals for vision, audio, and display applications
6. Mount shields to extend functionality
7. 8 × 13 LED matrix for visual output and feedback
8. USB-C for power delivery and video output
9. Connect keyboard, mouse, USB microphones, or USB cameras via dongle
10. Expand easily using Modulino® nodes without soldering

Specifications:

• Product Type: Single Board Computer
• Brand: Arduino
• Model: UNO Q
• Model Number: ABX00162
• Processor: Quad-core QRB2210 + STM32U585 MCU
• Memory: 2 GB RAM / 32 GB eMMC
• Flash Memory: 2 MB
• SRAM: 786 KB
• GPU: Adreno 702 @ 845 MHz
• I/O & Display: USB-C DisplayPort, 8×13 LED matrix, RGB LEDs
• Input Voltage: 7–24 V DC
• Connectivity: Wi-Fi 5 (2.4/5 GHz) + Bluetooth 5.1
• USB: USB 3.1 with 5 V / 3 A output
• I/O Interfaces: Digital (JDIGITAL, JSPI, Qwiic), Analog (ADC, PWM, CAN)
• Operating Temperature: −10°C to 60°C
• Dimensions: 68.58 × 53.34 mm
• Applications: AI edge computing, robotics, IoT gateways, embedded Linux development, industrial automation, smart devices
• Compatible applications: Arduino App Lab , Arduino IDE etc.

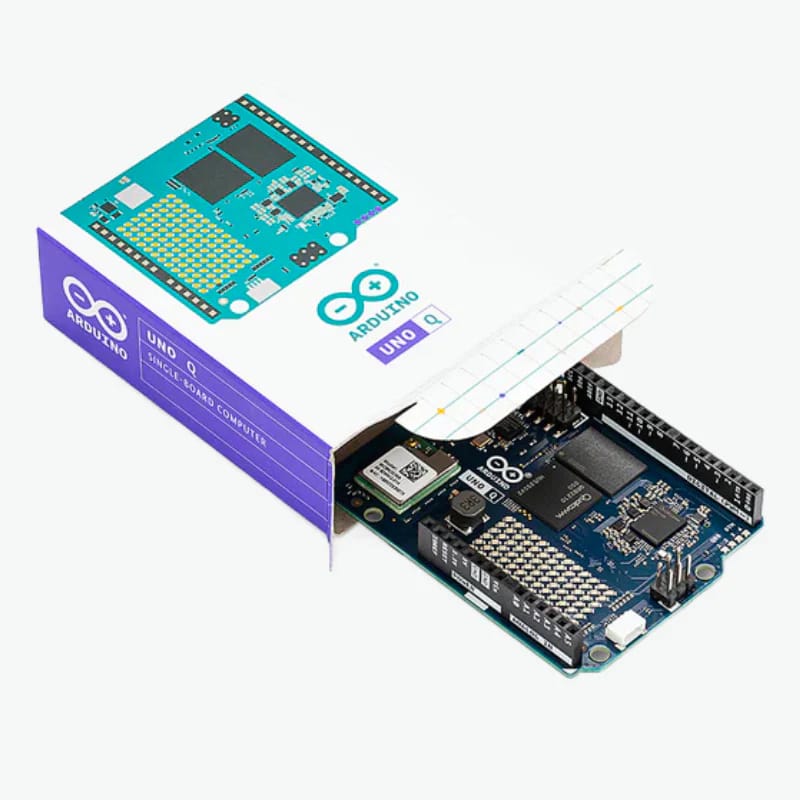

Package Includes:

1 x Official Arduino UNO Q 2GB Single Board Computer ABX00172
