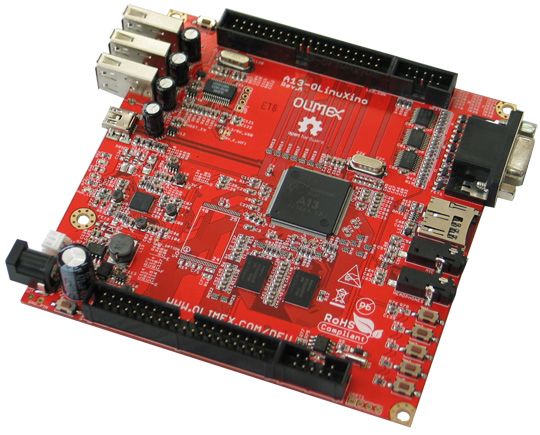

A13-OLinuXino
SHOP FOR
A13-OLinuXino WiFi

Description of product

A13-OLinuXino is a low-cost single-board Linux computer in a compact nano-ITX form. It uses the very first Cortex A8 processor available in the eLQFP176 package, produced by Allwinner Technology Inc A13
A13-OLinuXino is produced in two versions. A13-OLinuXino-WIFI has everything what A13-OLinuXino had plus 4GB NAND Flash and USB-to-WIFI adapter which allows wireless connectivity
FEATURES
A13 Cortex A8 processor at 1GHz, 3D Mali400 GPU
512 MB RAM (2 x 256Mbit x 8)
4GB NAND Flash (for A13-OLinuXino-WIFI)
6-16VDC input power supply, noise immune design
3 + 1 USB hosts, 3 available for users, 1 leads to onboard pinout or to WIFI module (for A13-OLinuXino-WIFI)
1 USB OTG which can power the board
SD-card connector for booting optional Linux images
VGA video output
Battery option and connector
LCD signals available on connector so you still can use LCD if you disable VGA/HDMI
Audio output
Microphone input
4 Mount holes
RTC PCF8563 on board for real time clock and alarms
5 Keys on board for android navigation
UEXT connector for attaching expansion boards (sensors, relays, etc)
GPIO connector with 68/74 pins and these signals:
17 for adding NAND flash;
22 for connecting LCDs;
20+4 including 8 GPIOs which can be input, output, interrupt sources;
3x I2C;
2x UARTs;
SDIO2 for connecting SDcards and modules;
5 system pins: +5V, +3.3V, GND, RESET, NMI
Dimensions: (120x120)mm ~ (4.7x4.7)''

DOCUMENTS
User's manual
A13-processor brief and datasheet
Wiki
Hardware fix for the first batch of DEV edition boards
HARDWARE
GitHub OLINUXINO Project
SOFTWARE
GitHub OLINUXINO Project
Linux Sunxi
Image links, instructions, demo software, customer projects and more might be found at the wiki page: A13-OLinuXino article
COMMUNITY
OLinuXino forum for discussions and community support
Freenode #olimex irc channel for OLinuXino development discussions
