A13-OLinuXino
A13-OLinuXino

Description of product

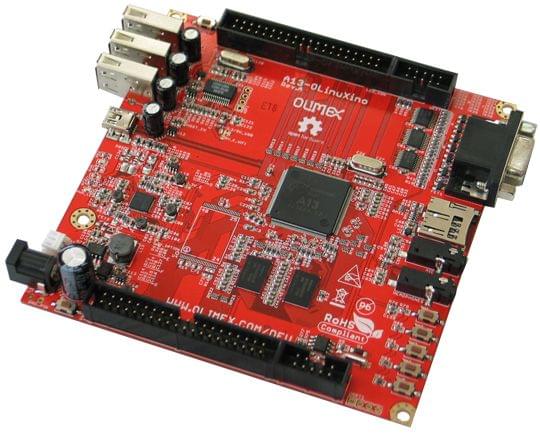

A13-OLinuXino is a low-cost single-board Linux computer in a compact nano-ITX form. It uses the very first Cortex A8 processor available in the eLQFP176 package, produced by Allwinner Technology Inc A13.



FEATURES

  • A13 Cortex A8 processor at 1GHz, 3D Mali400 GPU
  • 512 MB RAM (2 x 256Mbit x 8)
  • 4GB NAND Flash (for A13-OLinuXino-WIFI)
  • 6-16VDC input power supply, noise immune design
  • 3 + 1 USB hosts, 3 available for users, 1 leads to onboard pinout or to WIFI module (for A13-OLinuXino-WIFI)
  • 1 USB OTG which can power the board
  • SD-card connector for booting optional Linux images
  • VGA video output
  • Battery option and connector
  • LCD signals available on connector so you still can use LCD if you disable VGA/HDMI
  • Audio output
  • Microphone input
  • 4 Mount holes
  • RTC PCF8563 on board for real time clock and alarms
  • 5 Keys on board for android navigation
  • UEXT connector for attaching expansion boards (sensors, relays, etc)
  • GPIO connector with 68/74 pins and these signals:
    • 17 for adding NAND flash;
    • 22 for connecting LCDs;
    • 20+4 including 8 GPIOs which can be input, output, interrupt sources;
    • 3x I2C;
    • 2x UARTs;
    • SDIO2 for connecting SDcards and modules;
    • 5 system pins: +5V, +3.3V, GND, RESET, NMI
  • Dimensions: (120x120)mm ~ (4.7x4.7)''
