Description

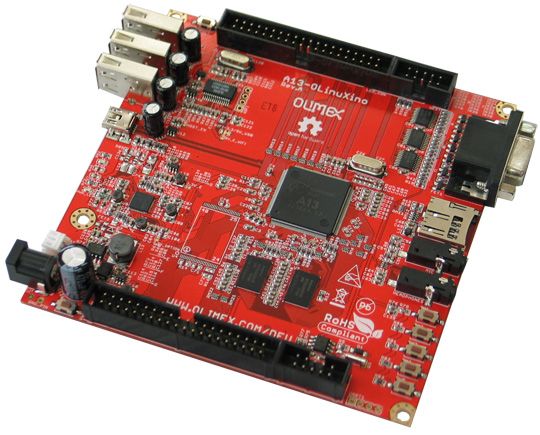

A13-OLinuXino is a low-cost single-board Linux computer in a compact nano-ITX form. It uses the very first Cortex A8 processor available in the eLQFP176 package, produced by Allwinner Technology Inc A13
A13-OLinuXino is produced in two versions. A13-OLinuXino-WIFI has everything what A13-OLinuXino had plus 4GB NAND Flash and USB-to-WIFI adapter which allows wireless connectivity

Features

A13 Cortex A8 processor at 1GHz, 3D Mali400 GPU
512 MB RAM (2 x 256Mbit x 8)
4GB NAND Flash (for A13-OLinuXino-WIFI)
6-16VDC input power supply, noise immune design
3 + 1 USB hosts, 3 available for users, 1 leads to onboard pinout or to WIFI module (for A13-OLinuXino-WIFI)
1 USB OTG which can power the board
SD-card connector for booting optional Linux images
VGA video output
Battery option and connector
LCD signals available on connector so you still can use LCD if you disable VGA/HDMI
Audio output
Microphone input
4 Mount holes
RTC PCF8563 on board for real time clock and alarms
5 Keys on board for android navigation
UEXT connector for attaching expansion boards (sensors, relays, etc)
GPIO connector with 68/74 pins and these signals:
17 for adding NAND flash;
22 for connecting LCDs;
20+4 including 8 GPIOs which can be input, output, interrupt sources;
3x I2C;
2x UARTs;
SDIO2 for connecting SDcards and modules;
5 system pins: +5V, +3.3V, GND, RESET, NMI
Dimensions: (120x120)mm ~ (4.7x4.7)''
