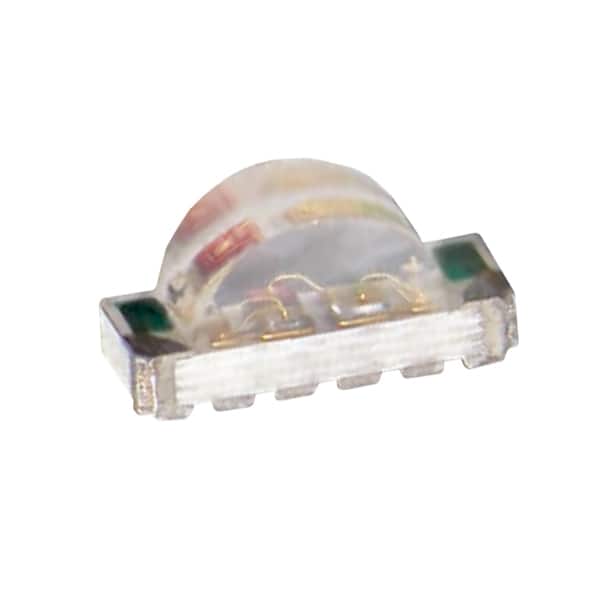

Series | HELI Colour |
Product Status | Active |
Color | Green, Red, Yellow |
Configuration | Common Anode |
Lens Color | Colorless |
Lens Transparency | Clear |
Millicandela Rating | 45mcd Green, 220mcd Red, 180mcd Yellow |
Lens Style | Rectangle with Domed Top |
Lens Size | 2.00mm x 1.00mm |
Voltage - Forward (Vf) (Typ) | 2.1V Green, 1.95V Red, 2V Yellow |
Current - Test | 20mA Green, 20mA Red, 20mA Yellow |
Viewing Angle | 150° |
Mounting Type | Surface Mount, Right Angle |
Wavelength - Dominant | 570nm Green, 630nm Red, 590nm Yellow |
Wavelength - Peak | 574nm Green, 645nm Red, 590nm Yellow |
Features | - |
Package / Case | 4-SMD, No Lead |
Supplier Device Package | 4-SMD |
Size / Dimension | 3.00mm L x 1.50mm W |
Height (Max) | 1.20mm |
Series | HELI Colour |
Product Status | Active |
Color | Green, Red, Yellow |
Configuration | Common Anode |
Lens Color | Colorless |
Lens Transparency | Clear |
Millicandela Rating | 45mcd Green, 220mcd Red, 180mcd Yellow |
Lens Style | Rectangle with Domed Top |
Lens Size | 2.00mm x 1.00mm |
Voltage - Forward (Vf) (Typ) | 2.1V Green, 1.95V Red, 2V Yellow |
Current - Test | 20mA Green, 20mA Red, 20mA Yellow |
Viewing Angle | 150° |
Mounting Type | Surface Mount, Right Angle |
Wavelength - Dominant | 570nm Green, 630nm Red, 590nm Yellow |
Wavelength - Peak | 574nm Green, 645nm Red, 590nm Yellow |
Features | - |
Package / Case | 4-SMD, No Lead |
Supplier Device Package | 4-SMD |
Size / Dimension | 3.00mm L x 1.50mm W |
Height (Max) | 1.20mm |
