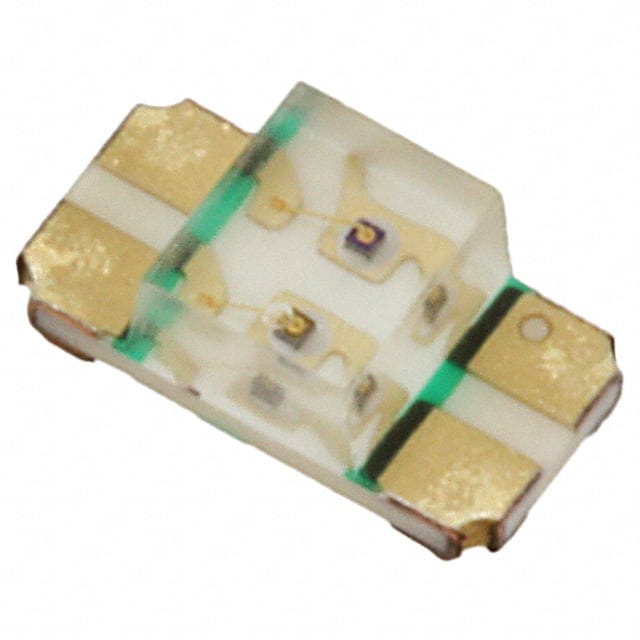

LED GREEN/RED CLEAR CHIP SMD

Product Attributes:

Series-
Product StatusActive
ColorGreen, Red
ConfigurationIndependent
Lens ColorColorless
Lens TransparencyClear
Millicandela Rating35mcd Green, 45mcd Red
Lens StyleRectangle with Flat Top
Lens Size1.50mm x 1.60mm
Voltage - Forward (Vf) (Typ)2V Green, 2V Red
Current - Test20mA Green, 20mA Red
Viewing Angle130°
Mounting TypeSurface Mount, Bottom Entry
Wavelength - Dominant571nm Green, 631nm Red
Wavelength - Peak574nm Green, 639nm Red
Features-
Package / Case1206 (3216 Metric)
Supplier Device PackageChip LED
Size / Dimension3.20mm L x 1.60mm W
Height (Max)1.10mm
TT-DKEY-160-2026-2-ND,160-2026-1-ND,160-2026-6-ND
in stockINR 51.615
Lite-On Inc.
1 1
Lite-On Inc. 160-2026-2-ND,160-2026-1-ND,160-2026-6-ND

Lite-On Inc. 160-2026-2-ND,160-2026-1-ND,160-2026-6-ND

Sku: TT-DKEY-160-2026-2-ND,160-2026-1-ND,160-2026-6-ND
₹51.62


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

LED GREEN/RED CLEAR CHIP SMD

Product Attributes:

Series-
Product StatusActive
ColorGreen, Red
ConfigurationIndependent
Lens ColorColorless
Lens TransparencyClear
Millicandela Rating35mcd Green, 45mcd Red
Lens StyleRectangle with Flat Top
Lens Size1.50mm x 1.60mm
Voltage - Forward (Vf) (Typ)2V Green, 2V Red
Current - Test20mA Green, 20mA Red
Viewing Angle130°
Mounting TypeSurface Mount, Bottom Entry
Wavelength - Dominant571nm Green, 631nm Red
Wavelength - Peak574nm Green, 639nm Red
Features-
Package / Case1206 (3216 Metric)
Supplier Device PackageChip LED
Size / Dimension3.20mm L x 1.60mm W
Height (Max)1.10mm
