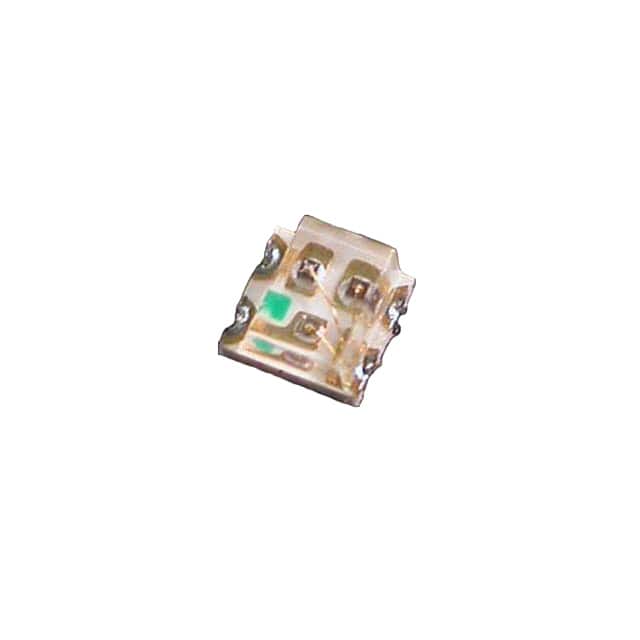

Series | HELI Colour |
Product Status | Active |
Color | Red, Green, Blue (RGB) |
Configuration | Common Anode |
Lens Color | Colorless |
Lens Transparency | Clear |
Millicandela Rating | 15mcd Red, 50mcd Green, 14mcd Blue |
Lens Style | Rectangle with Flat Top |
Lens Size | 1.20mm x 1.60mm |
Voltage - Forward (Vf) (Typ) | 1.8V Red, 2.7V Green, 2.7V Blue |
Current - Test | 2mA Red, 2mA Green, 2mA Blue |
Viewing Angle | 120° |
Mounting Type | Surface Mount |
Wavelength - Dominant | 621nm Red, 525nm Green, 465nm Blue |
Wavelength - Peak | 630nm Red, 515nm Green, 460nm Blue |
Features | - |
Package / Case | 0606 (1616 Metric) |
Supplier Device Package | 4-SMD |
Size / Dimension | 1.60mm L x 1.60mm W |
Height (Max) | 0.90mm |
Series | HELI Colour |
Product Status | Active |
Color | Red, Green, Blue (RGB) |
Configuration | Common Anode |
Lens Color | Colorless |
Lens Transparency | Clear |
Millicandela Rating | 15mcd Red, 50mcd Green, 14mcd Blue |
Lens Style | Rectangle with Flat Top |
Lens Size | 1.20mm x 1.60mm |
Voltage - Forward (Vf) (Typ) | 1.8V Red, 2.7V Green, 2.7V Blue |
Current - Test | 2mA Red, 2mA Green, 2mA Blue |
Viewing Angle | 120° |
Mounting Type | Surface Mount |
Wavelength - Dominant | 621nm Red, 525nm Green, 465nm Blue |
Wavelength - Peak | 630nm Red, 515nm Green, 460nm Blue |
Features | - |
Package / Case | 0606 (1616 Metric) |
Supplier Device Package | 4-SMD |
Size / Dimension | 1.60mm L x 1.60mm W |
Height (Max) | 0.90mm |
