613b0d9ed1bd6568d0303818 Würth Elektronik 732-4978-2-ND,732-4978-1-ND,732-4978-6-ND https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/613b0da0d1bd6568d030389c/webp/wl-smcwpercent20seriespercent200603.jpg

LED RED CLEAR 0603 SMD

Product Attributes:

SeriesWL-SMCW
Part StatusActive
ColorRed
ConfigurationStandard
Lens ColorColorless
Lens TransparencyClear
Millicandela Rating250mcd
Lens StyleRectangle with Flat Top
Lens Size1.10mm x 0.70mm
Voltage - Forward (Vf) (Typ)2V
Current - Test20mA
Viewing Angle140°
Mounting TypeSurface Mount
Wavelength - Dominant625nm
Wavelength - Peak630nm
Features-
Package / Case0603 (1608 Metric)
Supplier Device Package0603
Size / Dimension1.60mm L x 0.80mm W
Height (Max)0.80mm

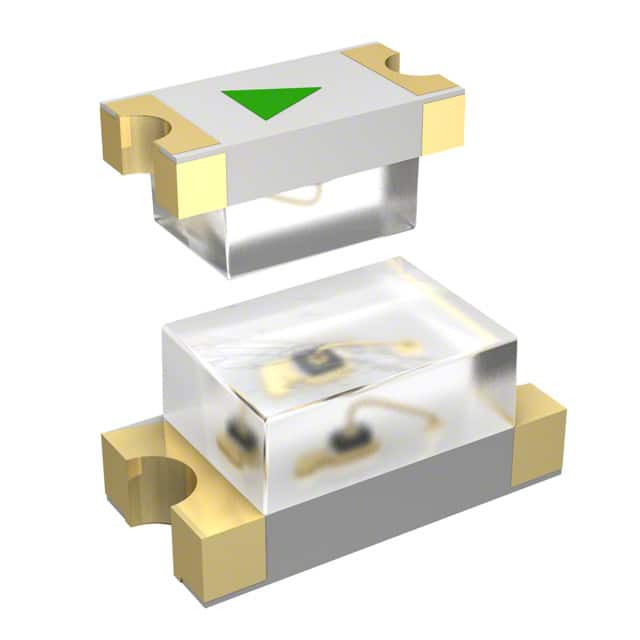

* Image is only ment for representation
TT-DKEY-732-4978-2-ND,732-4978-1-ND,732-4978-6-ND
in stockINR 16.058
Würth Elektronik
1 1
Würth Elektronik 732-4978-2-ND,732-4978-1-ND,732-4978-6-ND

Würth Elektronik 732-4978-2-ND,732-4978-1-ND,732-4978-6-ND

Sku: TT-DKEY-732-4978-2-ND,732-4978-1-ND,732-4978-6-ND
₹16.06


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

LED RED CLEAR 0603 SMD

Product Attributes:

SeriesWL-SMCW
Part StatusActive
ColorRed
ConfigurationStandard
Lens ColorColorless
Lens TransparencyClear
Millicandela Rating250mcd
Lens StyleRectangle with Flat Top
Lens Size1.10mm x 0.70mm
Voltage - Forward (Vf) (Typ)2V
Current - Test20mA
Viewing Angle140°
Mounting TypeSurface Mount
Wavelength - Dominant625nm
Wavelength - Peak630nm
Features-
Package / Case0603 (1608 Metric)
Supplier Device Package0603
Size / Dimension1.60mm L x 0.80mm W
Height (Max)0.80mm
* Image is only ment for representation
