67dbab98a508e8002bf42b7f Chemi-Con 565-EKYC500ELL181MJC5S-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/67dbab98a508e8002bf42b82/ekyc500ell181mjc5s.jpg

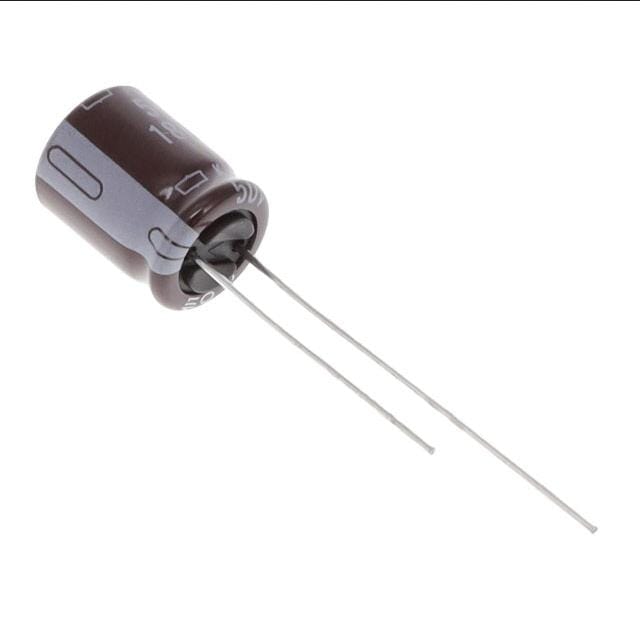

CAP ALUM 180UF 20% 50V RADIAL TH

Product Attributes:

Series KYC
Product Status Active
Capacitance 180 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) 140mOhm @ 100kHz
Lifetime @ Temp. 3000 Hrs @ 105°C
Operating Temperature -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 448 mA @ 120 Hz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.551" (14.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
Ripple Current @ High Frequency 1.12 A @ 100 kHz
Impedance -
TT-DKEY-565-EKYC500ELL181MJC5S-ND
in stock INR
Chemi-Con
1 1
Chemi-Con 565-EKYC500ELL181MJC5S-ND

Chemi-Con 565-EKYC500ELL181MJC5S-ND

Sku: TT-DKEY-565-EKYC500ELL181MJC5S-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

CAP ALUM 180UF 20% 50V RADIAL TH

Product Attributes:

Series KYC
Product Status Active
Capacitance 180 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) 140mOhm @ 100kHz
Lifetime @ Temp. 3000 Hrs @ 105°C
Operating Temperature -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 448 mA @ 120 Hz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.551" (14.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
Ripple Current @ High Frequency 1.12 A @ 100 kHz
Impedance -
