67dbaadb8b74a6003ef399eb Chemi-Con 565-EKYC350ELL512MM30S-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/67dbaadc8b74a6003ef399ef/ekyc350ell512mm30s.jpg

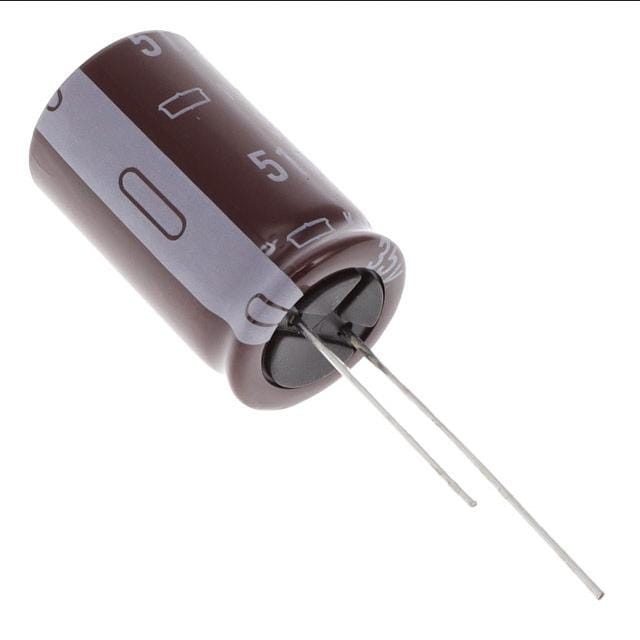

CAP ALUM 5100UF 20% 35V RADIAL

Product Attributes:

Series KYC
Product Status Active
Capacitance 5100 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) 24mOhm @ 100kHz
Lifetime @ Temp. 5000 Hrs @ 105°C
Operating Temperature -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 3.1535 A @ 120 Hz
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 1.240" (31.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
Ripple Current @ High Frequency 3.71 A @ 100 kHz
Impedance -
TT-DKEY-565-EKYC350ELL512MM30S-ND
in stock INR
Chemi-Con
1 1
Chemi-Con 565-EKYC350ELL512MM30S-ND

Chemi-Con 565-EKYC350ELL512MM30S-ND

Sku: TT-DKEY-565-EKYC350ELL512MM30S-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

CAP ALUM 5100UF 20% 35V RADIAL

Product Attributes:

Series KYC
Product Status Active
Capacitance 5100 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) 24mOhm @ 100kHz
Lifetime @ Temp. 5000 Hrs @ 105°C
Operating Temperature -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 3.1535 A @ 120 Hz
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 1.240" (31.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
Ripple Current @ High Frequency 3.71 A @ 100 kHz
Impedance -
