6682a1d93ebfc09f70bd3779 Chemi-Con 565-EKYB630ELL102MK40S-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6682a1da3ebfc09f70bd3818/kybpercent20seriespercent2012-5mm.jpg

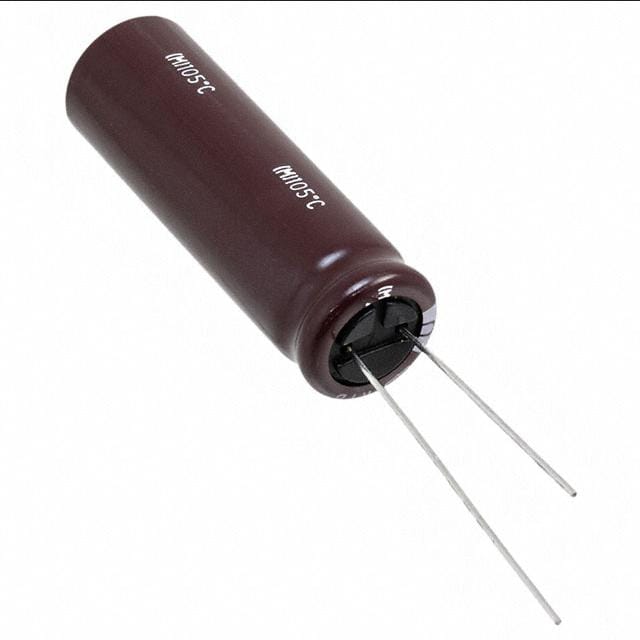

CAP ALUM 1000UF 20% 63V RADIAL

Product Attributes:

Series KYB
Product Status Active
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Operating Temperature -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.8 A @ 120 Hz
Ripple Current @ High Frequency 3 A @ 100 kHz
Impedance 20 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.634" (41.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
TT-DKEY-565-EKYB630ELL102MK40S-ND
in stock INR 208.79999999999998
Chemi-Con
1 1

Chemi-Con 565-EKYB630ELL102MK40S-ND

Sku: TT-DKEY-565-EKYB630ELL102MK40S-ND
₹208.8


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

CAP ALUM 1000UF 20% 63V RADIAL

Product Attributes:

Series KYB
Product Status Active
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Operating Temperature -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.8 A @ 120 Hz
Ripple Current @ High Frequency 3 A @ 100 kHz
Impedance 20 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.634" (41.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
