6682a0beb9f271ce9b167cea Chemi-Con 565-EKYB250ELL102MJ20S-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6682a0beb9f271ce9b167d08/kybpercent20seriespercent2010x21-5mm.jpg

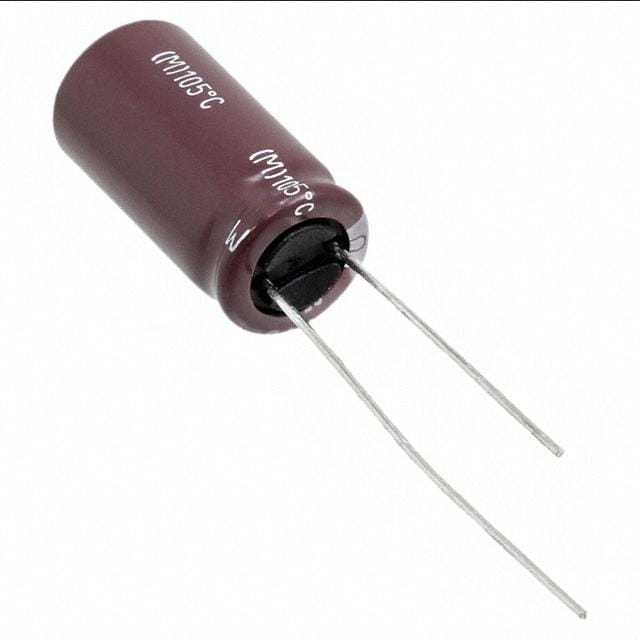

CAP ALUM 1000UF 20% 25V RADIAL

Product Attributes:

Series KYB
Product Status Active
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Operating Temperature -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 990 mA @ 120 Hz
Ripple Current @ High Frequency 1.65 A @ 100 kHz
Impedance 37 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.846" (21.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
TT-DKEY-565-EKYB250ELL102MJ20S-ND
in stock INR 95.04
Chemi-Con
1 1

Chemi-Con 565-EKYB250ELL102MJ20S-ND

Sku: TT-DKEY-565-EKYB250ELL102MJ20S-ND
₹95.04


Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

CAP ALUM 1000UF 20% 25V RADIAL

Product Attributes:

Series KYB
Product Status Active
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Operating Temperature -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 990 mA @ 120 Hz
Ripple Current @ High Frequency 1.65 A @ 100 kHz
Impedance 37 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.846" (21.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
